Chevrolet Equinox Service Manual: Trailing Arm Bracket Replacement Control Arms

Chevrolet Equinox Service Manual / Chassis / Suspension / Trailing Arm Bracket Replacement Control Arms

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the park brake cable from the trailing arm and fromthe frame. Refer toParking Brake Rear Cable Replacement.

Trailing Arm Bracket Replacement Control Arms

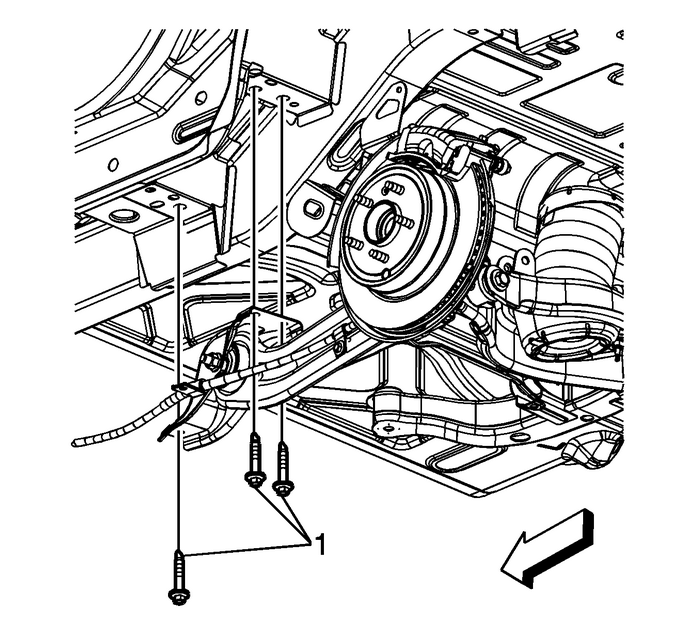

Remove the trailing arm bracket to bodybolts-(1).

Trailing Arm Bracket Replacement Control Arms

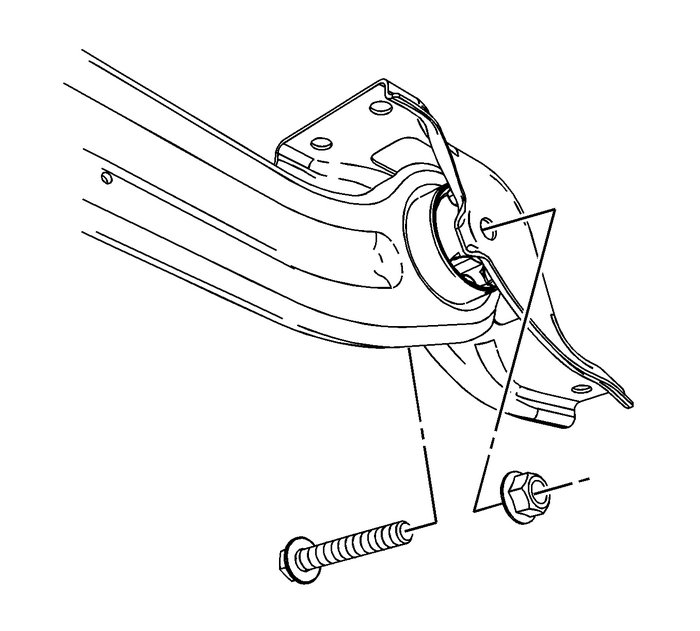

Remove the trailing arm bushing to bracket nut andbolt.Remove the trailing arm bracket.Installation ProcedurePosition the trailing arm bracket to the trailing arm.

Trailing Arm Bracket Replacement Control Arms

Loosely install the trailing arm bushing to bracket nut andbolt.

Trailing Arm Bracket Replacement Control Arms

Push upward on the trailing arm bracket and loosely installthe front bolt-(1).

Caution:Refer toFastener Caution.

Use a drift to align the remaining trailing arm bracketbolts-(1). Tighten the bolts to110-Y(81-lb-ft).Tighten the trailing arm bushing to bracket nut and bolt to160-Y(118-lb-ft).Install the park brake cable on the trailing arm and on theframe. Refer toParking Brake Rear Cable Replacement.Remove the support and lower the vehicle.
