Chevrolet Equinox Service Manual: Sunroof Frame Replacement Moonroof/Sunroof

Chevrolet Equinox Service Manual / Body / "Roof - Fixed, Leisure" / Sunroof Frame Replacement Moonroof/Sunroof

Removal ProcedureIt is only necessary to lower the headliner. Only do thosestep in headliner replacement that will lower the headliner enoughto gain access to the part. Refer toHeadlining Trim Panel Replacement.

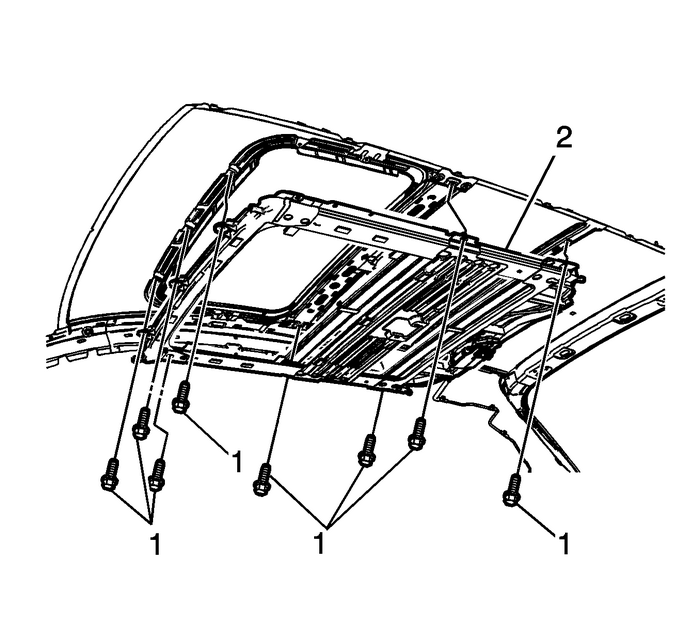

Sunroof Frame Replacement Moonroof/Sunroof

Remove the sunroof window. Refer toSunroof Window Replacement.Disconnect the electrical connector from the sunroofframe.Disconnect the front and rear sunroof drain hoses. Refer toSunroof Housing Front Drain Hose ReplacementandSunroof Housing Rear Drain Hose Replacement.With the aid of an assistant, remove the bolts-(1)that secure the sunroof frame-(2).Installation ProcedureBefore transferring any parts perform thetiming/synchronization of the sunroof frame. Refer toSunroof Track Timing/Synchronization.Transfer all necessary parts to the new frame.

Sunroof Frame Replacement Moonroof/Sunroof

With the aid of an assistant, position the new sunroofframe-(2) into the roof opening.

Caution:Refer toFastener Caution.

With the aid of an assistant, install thebolts-(1) that secure the sunroof frame-(2)to the roof.

Tighten

Tighten the bolts to 8-Y(70-lb-in).Connect the front and rear sunroof drain hoses. Refer toSunroof Housing Front Drain Hose ReplacementandSunroof Housing Rear Drain Hose Replacement.Connect the electrical connectors to the sunroofframe.Install and adjust the sunroof window. Refer toSunroof Window Replacement.Ensure the motor/actuator initialization/teach process hasbeen done. Refer toSunroof Motor/Actuator Initialization/Teach Process.Verify the proper operation of the sunroof before installingthe headliner.Install the headliner. Refer toHeadlining Trim Panel Replacement.
