Chevrolet Equinox Service Manual: Sunroof Panel Side Opening Closeout Cover Replacement Moonroof/Sunroof

Chevrolet Equinox Service Manual / Body / "Roof - Fixed, Leisure" / Sunroof Panel Side Opening Closeout Cover Replacement Moonroof/Sunroof

Removal Procedure

Sunroof Panel Side Opening Closeout Cover Replacement Moonroof/Sunroof

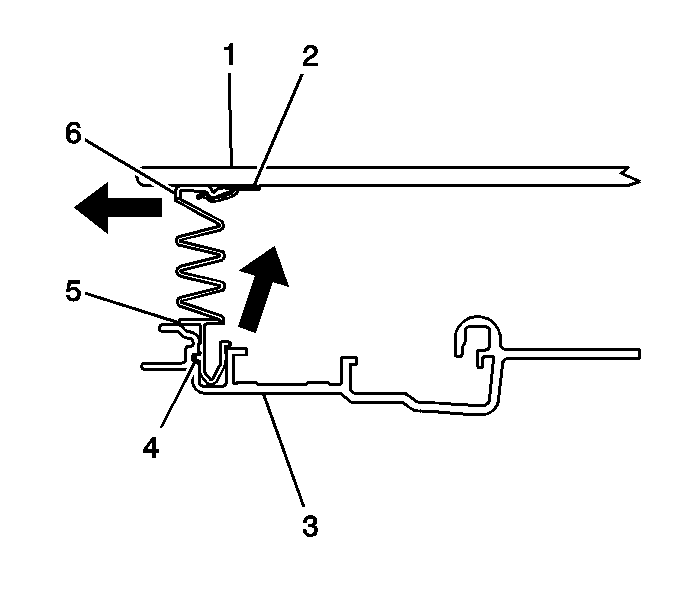

Open the sunshade to the full rearward position.Open the sunroof window-(1) to the ventposition.Detach both sides of the sunroof side opening closeout panelcovers-(6) from the sunroof windowclips-(2).Open the sunroof to the full open position.Using a flat-bladed tool, press the lockingtab-(4) outward, from inside the roof opening, in orderto detach the side opening closeout panel cover from the sunrooftrack channel-(3).With the lock tab-(4) depressed, lift the frontedge of the side opening closeout panel cover from the track,working towards the rear of the sunroof opening.Repeat the steps for the entire length of the side openingcloseout panel cover-(6).Remove the sunroof side opening closeout panel cover from thesunroof module track assembly.Installation Procedure

Sunroof Panel Side Opening Closeout Cover Replacement Moonroof/Sunroof

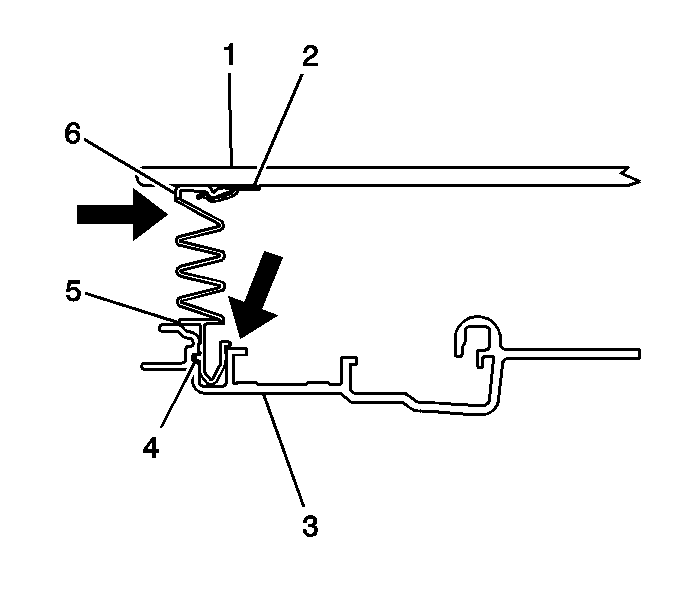

Place in position, the new sunroof side opening closeoutpanel cover-(6) to the sunroof module trackassembly-(3).Hold the lower part-(5) of the side openingcloseout panel cover firmly and press the lockingtab-(4) into the track assembly.Ensure the entire length of the side opening closeout panelcover-(6) is secure to the sunroof assemblytrack.Close the sunroof window-(1).Open the sunroof window to the vent position.Secure the sunroof side opening closeout panelcover-(6) to the 3-clips-(2)located on the inside edge of the sunroof window.Close the sunroof window.Cycle the sunroof window to the vent position and full openpositions in order to ensure the sunroof side opening closeoutpanel covers are secure to the attachment clips.Close the sunroof window.Close the sunshade.

Sunroof Frame Replacement Moonroof/Sunroof
Removal ProcedureIt is only necessary to lower the headliner. Only do thosestep in headliner replacement that will lower the headliner enoughto gain access to the part. Refer toHeadlining Trim Panel R ...

Sunroof Window Height and Opening Fit Adjustment Moonroof/Sunroof
Remove the sunroof panel side opening closeout covers. RefertoSunroof Panel Side Opening Closeout Cover Replacement.Note:Correct adjustment cannot be achieved if the sunroof windowis closed from vent ...
