Rear Window Washer Pump Hose Replacement - Washer Pump to Headliner Hose Washer Fluid System Washer Pump

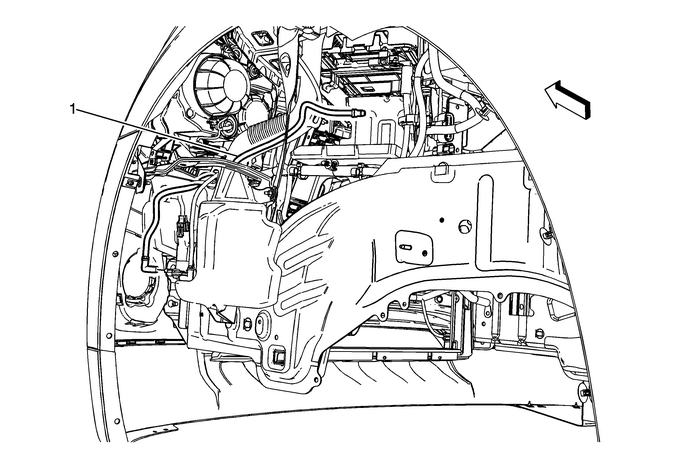

Rear Window Washer Pump Hose Replacement - Washer Pump to Headliner Hose

Callout

Component Name

Preliminary ProceduresRemove the driver side wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.Place a clean suitable container under the windshield washercontainer.Disconnect the rear window washer pump hose from the rearwindow washer nozzle extension hose.Disconnect the rear window washer pump hose from thewindshield washer pump spout.Remove the rear window washer pump hose from the windshieldwasher container.

1

Rear Window Washer Pump Hose

Procedure

Route the new hose through the windshield washer solventcontainer tabs as removed and re-connect the hose ends.
