Rear Window Washer Nozzle Replacement (Terrain) Washer Fluid System Washer Nozzles

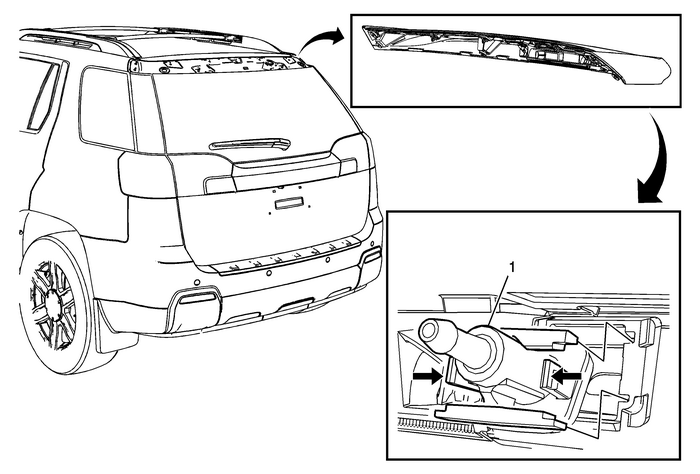

Rear Window Washer Nozzle Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear end spoiler. Refer toRear End Spoiler Replacement.

Rear Window Washer Nozzle

ProcedureDisconnect the rear window washer nozzle hose from the rearwindow washer nozzle spout.Depress the two tabs and remove the rear washer nozzle fromthe high mount stop lamp assembly.
