Rear Window Washer Nozzle Replacement Washer Fluid System Washer Nozzles

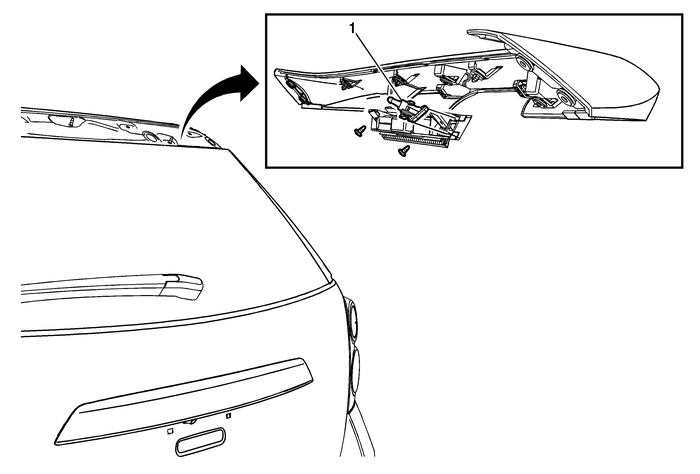

Rear Window Washer Nozzle Replacement

Callout

Component Name

Preliminary Procedure

Remove the high mount stop lamp. Refer toHigh Mount Stop Lamp Replacement.

1

Rear Window Washer Nozzle

Procedure

Remove the washer nozzle from the high mount stop lampassembly.

Special Tools
IllustrationTool Number/ DescriptionJ-39637Wiper Arm Puller ...

Rear Window Washer Nozzle Replacement (Terrain) Washer Fluid System Washer Nozzles
Rear Window Washer Nozzle ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear end spoiler. Refer toRear End Spoiler Replacement.1Rear Window Washer NozzleProcedureDisconnect the rear ...
