Instrument Panel Courtesy Lamp Replacement - Right Side Dashboard Assembly

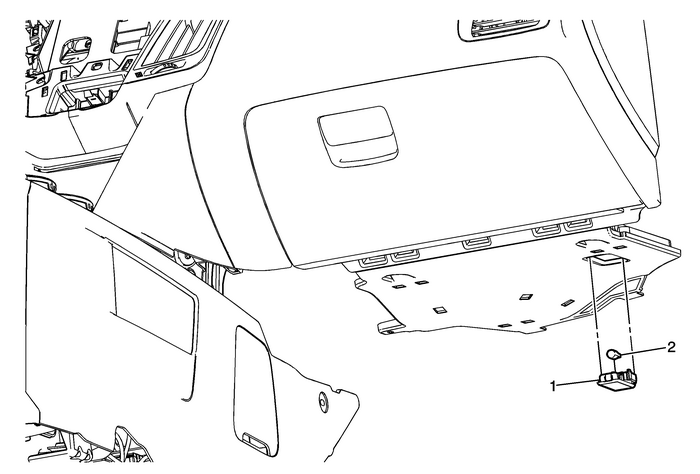

Instrument Panel Courtesy Lamp Replacement - Right Side

Callout

Component Name

Preliminary Procedure

Remove the instrument panel insulator panel right side. RefertoInstrument Panel Insulator Panel Replacement - Right Side.

Instrument Panel Courtesy Lamp

ProcedureUse a plastic flat-bladed trim tool in order torelease the lamp assembly from the instrument panel compartmenthousing.Disconnect the electrical connection.

Instrument Panel Courtesy Lamp Bulb

Instrument Panel Courtesy Lamp Replacement - Left Side Dashboard Assembly

Instrument Panel Courtesy Lamp Replacement - Left SideCalloutComponent NamePreliminary ProcedureRemove the instrument panel insulator panel left side. RefertoInstrument Panel Insulator Panel Replaceme ...

Instrument Panel Insulator Panel Replacement - Left Side (Terrain) Consoles Center Console

Instrument Panel Insulator Panel Replacement - Left SideCalloutComponent NamePreliminary ProcedureRemove the drivers knee bolster panel. Refer toDriver Knee Bolster Panel Replacement.1Instrument Panel ...
