Front Side Marker Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Side Markers

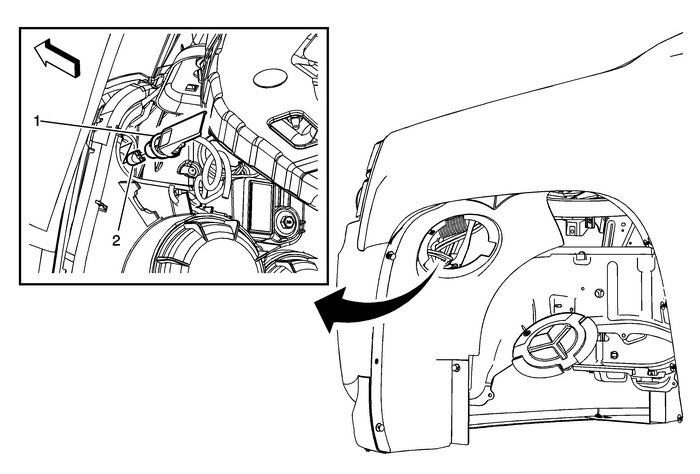

Front Side Marker Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse front panel hole cover. Refer toFront Wheelhouse Front Panel Hole Cover Replacement.

1

Front Side Marker Lamp Bulb Socket

Procedure

Rotate the bulb socket counter-clockwise and remove from theheadlamp.

2

Front Side Marker Lamp Bulb

Tip:Pull the bulb straight from the lamp bulb socket.
