Instrument Panel Courtesy Lamp Replacement - Left Side Dashboard Assembly

Instrument Panel Courtesy Lamp Replacement - Left Side

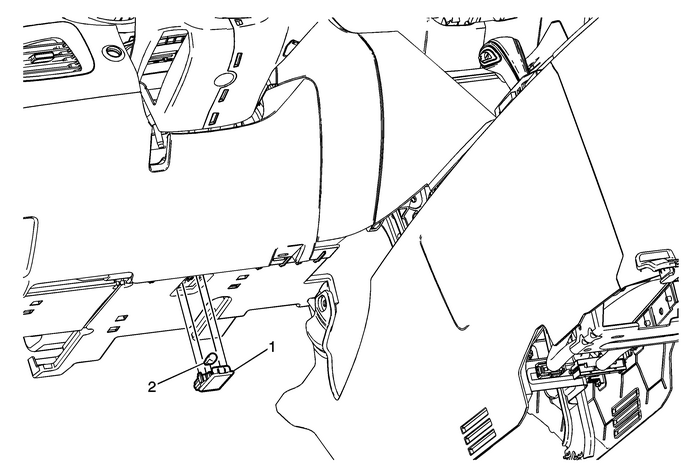

Callout

Component Name

Preliminary Procedure

Remove the instrument panel insulator panel left side. RefertoInstrument Panel Insulator Panel Replacement - Left Side.

1

Instrument Panel Courtesy Lamp

ProcedureUse a plastic flat-bladed trim tool in order torelease the lamp assembly from the drivers side kneebolster.Disconnect the electrical connection.

2

Instrument Panel Courtesy Lamp Bulb
