Chevrolet Equinox Service Manual: Timing Chain Idler Sprocket Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Timing Chain Idler Sprocket Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

Timing Chain Idler Sprocket Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

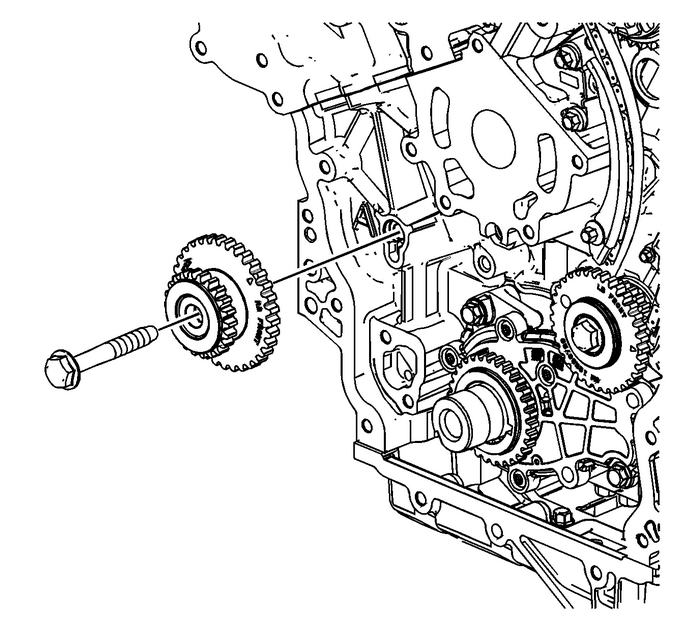

Remove the right camshaft intermediate drive chain idlerbolt.Remove the right camshaft intermediate drive chainidler.

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft
Remove the rear lift bracket-(1).Remove the front lift bracket-(1).Remove the ignition coil-(1).Remove the camshaft housing coverinsulator-(1).Note:DO NOT remove the PCV hose from the camshaft cover. ...

Cylinder Head Removal - Right Side Engine Block Cylinder Head
Remove the right cylinder head bolts-(1) and discard.Remove the right cylinder head-(2).Remove and discard the right cylinder head gasket-(1). ...
