Cylinder Head Removal - Right Side Engine Block Cylinder Head

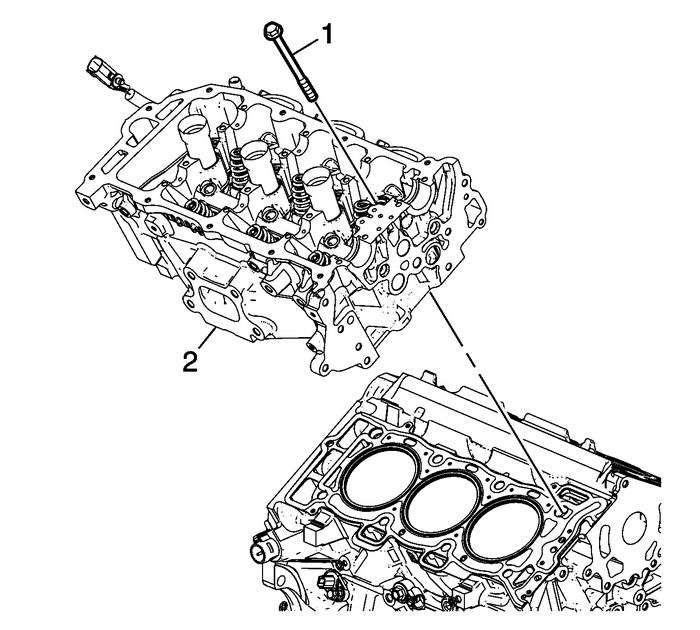

Remove the right cylinder head bolts-(1) and discard.Remove the right cylinder head-(2).

Cylinder Head Removal - Right Side Engine Block Cylinder Head

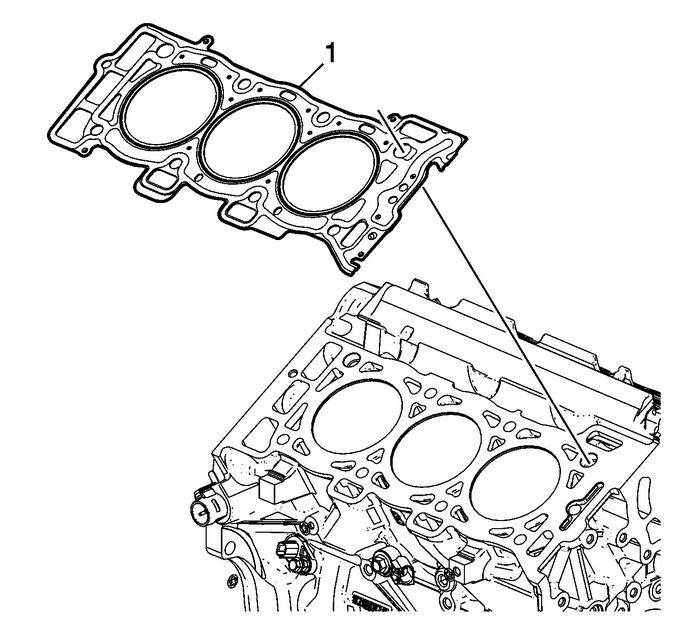

Remove and discard the right cylinder head gasket-(1).

Timing Chain Idler Sprocket Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the right camshaft intermediate drive chain idlerbolt.Remove the right camshaft intermediate drive chainidler. ...

Secondary Camshaft Intermediate Drive Chain Removal - Right Side Valvetrain Camshaft
Remove the right secondary camshaft drive chain from theright camshaft position actuators and the right camshaftintermediate drive chain idler sprocket. ...
