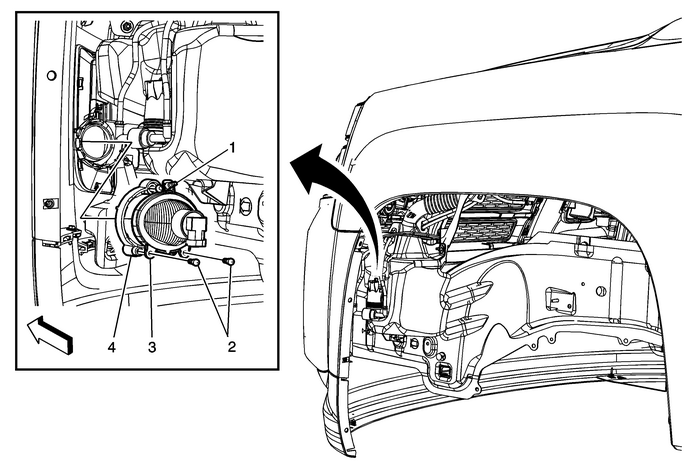

Front Fog Lamp Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove either the left front or right front wheelhouse liner.Refer toFront Wheelhouse Liner Replacement.Disconnect the fog lamp bulb socket electricalconnector.

1

Front Fog Lamp Adjuster Screw

Tip:Remove the adjuster screw in order to access the lockingring.

2

Front Fog Lamp Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

3

Front Fog Lamp Assembly

Procedure

Remove the lamp projector assembly from the fog lamp lockingring.

Tip:The fog lamp is replaced as an assembly.

4

Front Fog Lamp Locking Ring

ProcedureRelease the locking ring from the tabs on the front bumperfascia.Replace the fog lamp as an assembly.Aim the fog lamps after replacement. Refer toFog Lamp Aiming.
