Chevrolet Equinox Service Manual: Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

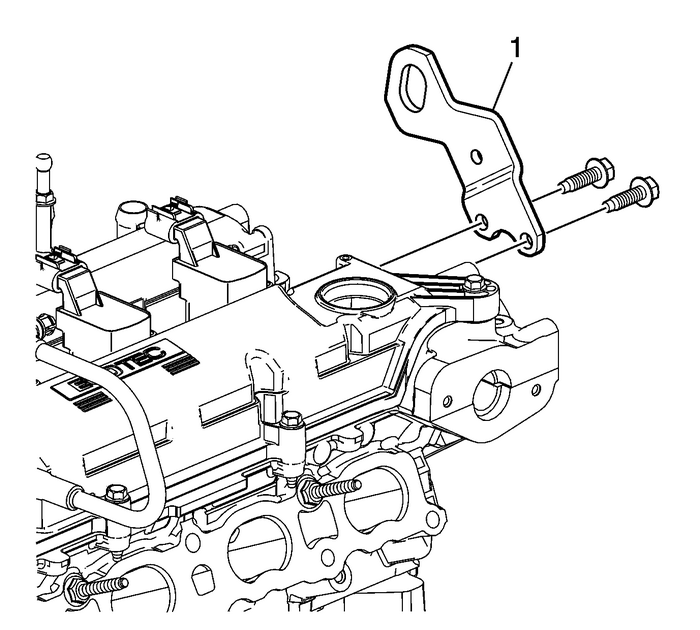

Remove the rear lift bracket-(1).

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

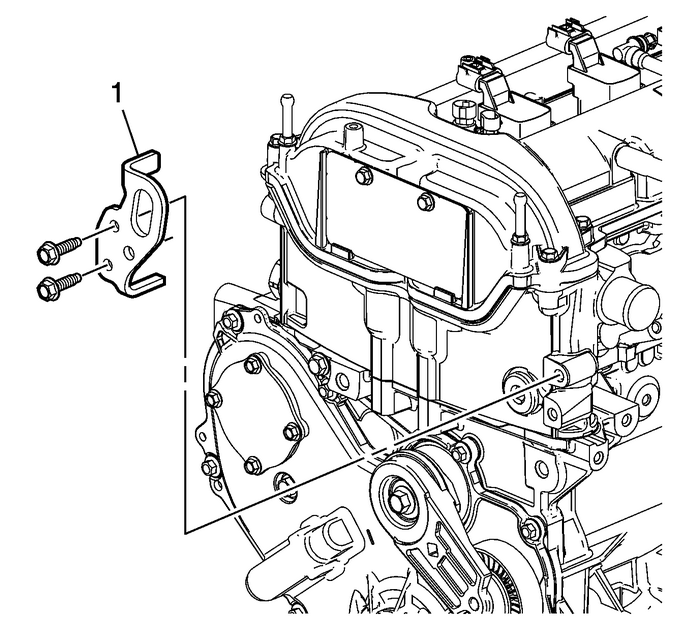

Remove the front lift bracket-(1).

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

Remove the ignition coil-(1).

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

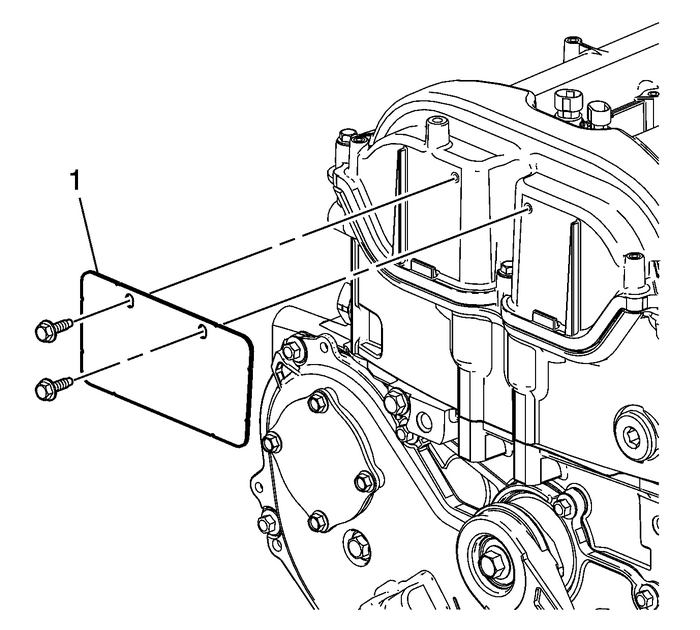

Remove the camshaft housing coverinsulator-(1).

Camshaft Cover Removal (LAF, LEA, or LUK) Valvetrain Camshaft

Note:DO NOT remove the PCV hose from the camshaft cover. If damageto the hose or connectors is present, the cover must bereplaced.

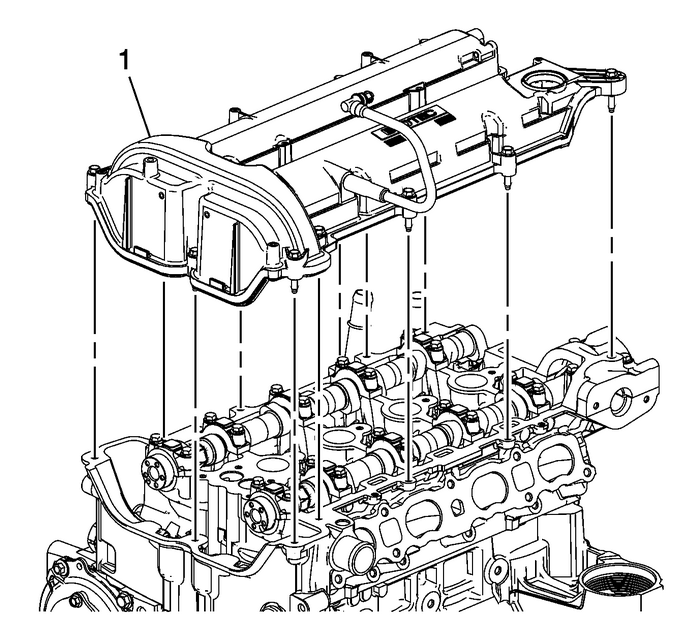

Remove the camshaft cover assembly-(1).Remove and discard the camshaft cover gasket, camshaft covergrommets, and camshaft cover bolts if they are serviced with thegrommet.
Primary Timing Chain Guide Removal - Upper Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the primary camshaft drive chain upper guidebolts.Remove the primary camshaft drive chain upper guides. ...

Timing Chain Idler Sprocket Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the right camshaft intermediate drive chain idlerbolt.Remove the right camshaft intermediate drive chainidler. ...
