Headlamp Bulb Replacement (Low Beam Equinox) Lighting Exterior Lighting Head Lamp

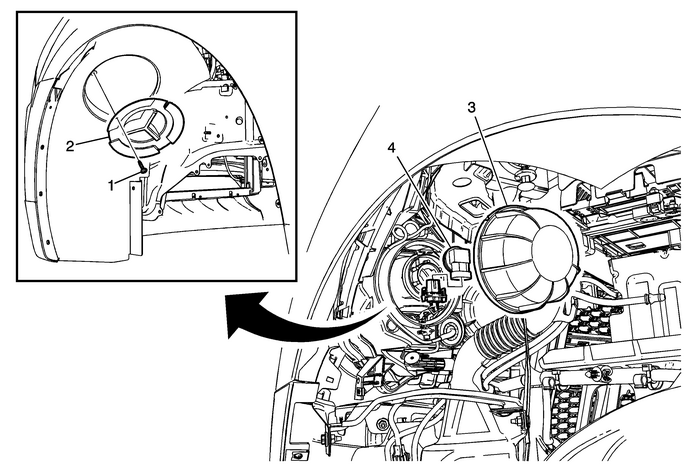

Headlamp Bulb Replacement

Callout

Component Name

Preliminary ProcedureTurn the tire and wheel assembly in order to access thewheelhouse panel hole cover and screw.Remove the screw and cover from the wheelhouse panelliner.

1

Wheelhouse Panel Hole Cover Screw

Caution:Refer toFastener Caution.

Hand tighten the screw.

2

Wheelhouse Panel Hole Cover

Tip:Rotate the cover counter-clockwise and remove.

3

Headlamp Bulb Accessory Cover

Tip:Rotate the cover counter-clockwise and remove.

4

Headlamp Bulb Assembly (Low Beam)

Warning:Refer toHalogen Bulb Warning.

ProcedureDisconnect the electrical connector from the bulbsocket.Rotate the bulb socket counter-clockwise and remove from theheadlamp assembly.
