Headlamp Bulb Replacement (Low Beam Terrain) Lighting Exterior Lighting Head Lamp

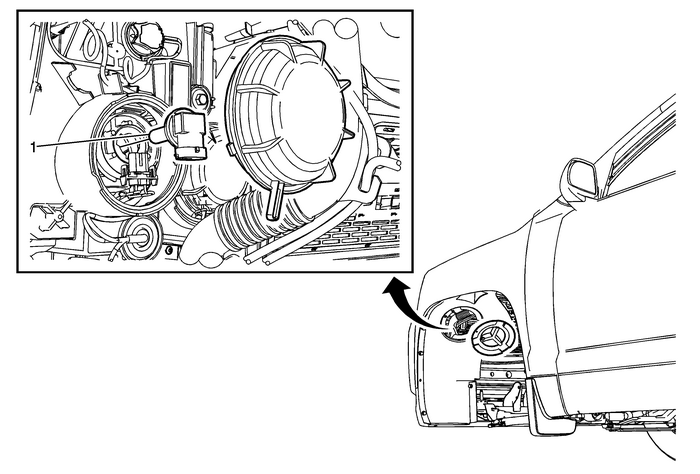

Headlamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse front panel hole cover. Refer toFront Wheelhouse Front Panel Hole Cover Replacement.

1

Headlamp Bulb Assembly-Low Beam

Procedure

Warning:Refer toHalogen Bulb Warning.

Remove the headlamp bulb access cover assembly.Turn the cover a quarter turn counter-clockwise.Disconnect the low beam bulb socket electricalconnector.Rotate the bulb socket a quarter turn counter-clockwise andremove from the headlamp assembly.
