Sun Load Temperature Sensor Replacement

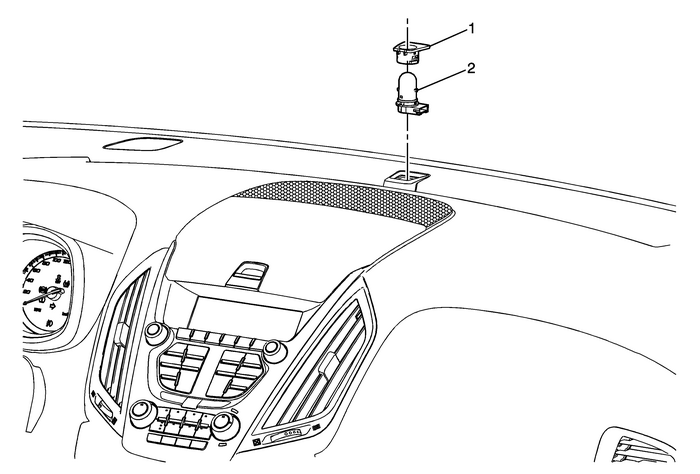

Sun Load Temperature Sensor Replacement

Callout

Component Name

1

Instrument Panel Accessory Trim Plate

Refer toInstrument Panel Accessory Trim Plate Replacement.

2

Sun Load Temperature Sensor

Procedure

Depress tabs to remove sensor from trim plate.
