Liftgate Hinge Replacement Panels

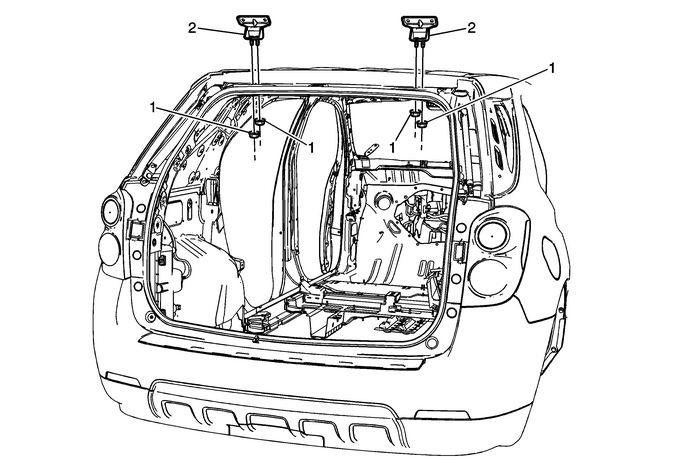

Liftgate Hinge Replacement

Callout

Component Name

Preliminary ProceduresRemove the liftgate. Refer toLiftgate Replacement.Lower the rear of the headliner to access the inner bolts.Refer toHeadlining Trim Panel Replacement.Use a grease pencil to mark the liftgate hinge position tothe body prior to removal.

1

Liftgate Hinge Nut (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Liftgate Hinge

Procedure

Adjust the liftgate if needed.
