Temperature Valve Actuator Replacement

____.

Temperature Valve Actuator Replacement

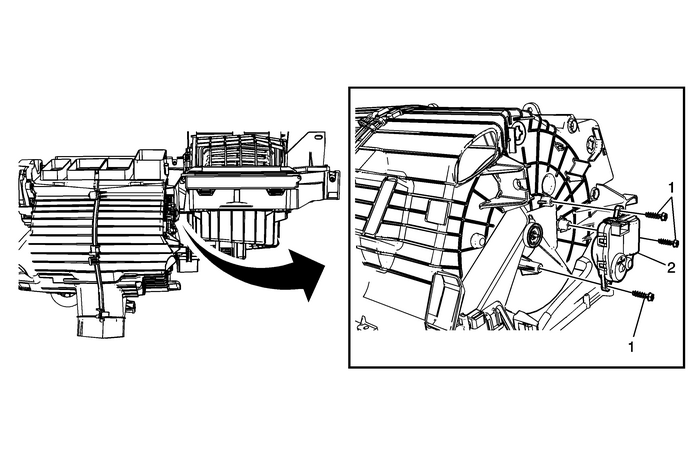

Callout

Component Name

Preliminary ProceduresDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Remove the insulator panel - right side. Refer toInstrument Panel Insulator Panel Replacement - Right Side.

1

Temperature Valve Actuator Screw (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

1.5-Y(13-lb-in)

2

Temperature Valve Actuator

Procedure

Disconnect the temperature actuator electricalconnector.

Tip:Actuator is self-calibrating when connecting thebattery.
