Chevrolet Equinox Service Manual: Headlamp Bulb Replacement (High Beam Terrain) Lighting Exterior Lighting Head Lamp

Chevrolet Equinox Service Manual / Body / Body Electrical / Headlamp Bulb Replacement (High Beam Terrain) Lighting Exterior Lighting Head Lamp

Headlamp Bulb Replacement (High Beam Terrain) Lighting Exterior Lighting Head Lamp

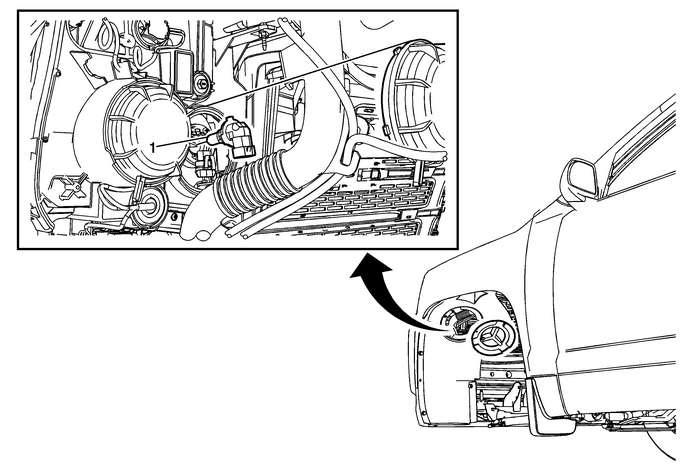

Headlamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse front panel hole cover. Refer toFront Wheelhouse Front Panel Hole Cover Replacement.

1

Headlamp Bulb Assembly-High Beam

Procedure

Warning:Refer toHalogen Bulb Warning.

Remove the headlamp bulb access cover assembly.Turn the cover a quarter turn counter-clockwise.Disconnect the high beam bulb socket electricalconnector.Rotate the bulb socket a quarter turn counter-clockwise andremove from the headlamp assembly.
