Headlamp Replacement (Terrain) Lighting Exterior Lighting Head Lamp

Headlamp Replacement

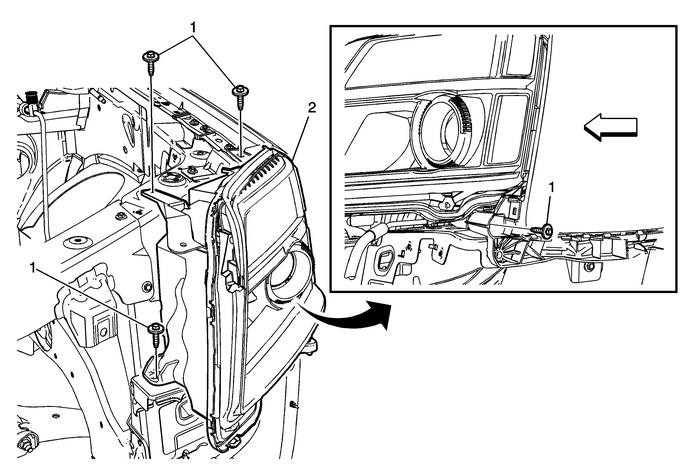

Callout

Component Name

Preliminary ProcedureOpen the hood.Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Headlamp Assembly Bolt-/-Screw (Qty:-4)

Caution:Refer toFastener Caution.

Tip:One screw is located inside the front bumper fascia side retainer assembly.

Tighten

4-Y (56-lb-in)

2

Headlamp Assembly

ProcedurePull from the bottom of the headlamp forward in order to release the headlamp locatorpin from the front outer corner of the body rail.Disconnect the forward lamp harness electrical connector on the headlamp being serviced.Check and adjust the front headlamp aim after the headlamps have been reinstalled.Refer toHeadlamp Aiming.
