Headlamp Replacement Lighting Exterior Lighting Head Lamp

Headlamp Replacement

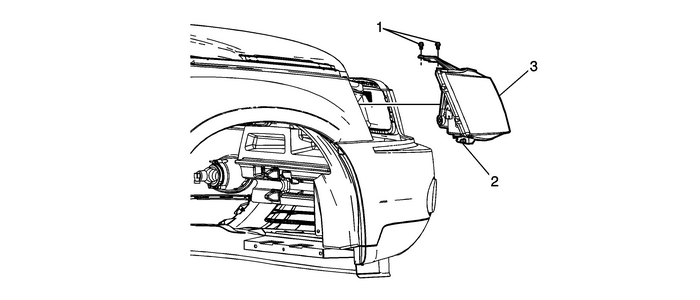

Callout

Component Name

Preliminary ProcedureOpen the hood.Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Headlamp Mounting Bolt-/-Screw (Qty:-4)

Caution:Refer toFastener Caution.

Tip:One screw is located at the front lower edge of the front fender outer panel at thebottom edge of the headlamp.

Tighten

4-Y (56-lb-in)

2

Headlamp Ball Socket Locator Pin

ProcedurePull from the bottom of the headlamp forward in order to release the headlamp locatorpin from the front outer corner of the body rail.Disconnect the forward lamp harness electrical connector on the headlamp being serviced.

3

Headlamp Assembly

Procedure

Check and adjust the front headlamp aim after the headlamp have been reinstalled.Refer toHeadlamp Aiming.
