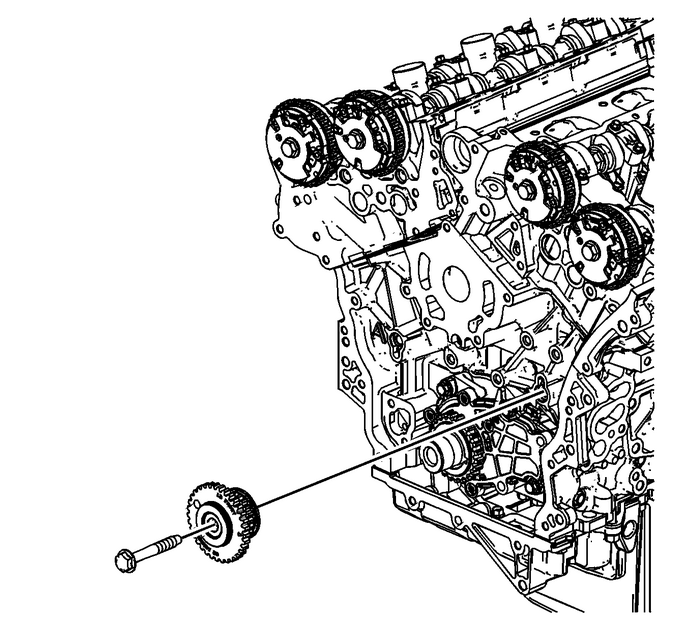

Timing Chain Idler Sprocket Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

Remove the left camshaft intermediate drive chain idlerbolt.Remove the left camshaft intermediate drive chainidler.

Camshaft Cover Removal - Right Side Valvetrain Camshaft
Remove the ignition coil bolts.Remove the ignition coils.Remove the right camshaft cover bolts.Remove and discard the camshaft cover grommets and camshaftcover bolts if they are serviced with the grom ...

Secondary Camshaft Intermediate Drive Chain Removal - Left Side Valvetrain Camshaft
Remove the left secondary camshaft drive chain from the leftcamshaft position actuators and the left camshaft intermediatedrive chain idler sprocket. ...
