Windshield Washer Nozzle Hose Replacement (Terrain) Washer Fluid System Washer Nozzles

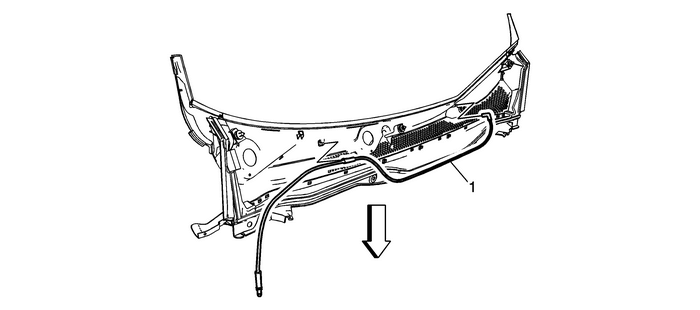

Windshield Washer Nozzle Hose Replacement

Callout

Component Name

Preliminary Procedure

Remove the air inlet screen. Refer toAir Inlet Screen Replacement.

1

Windshield Washer Nozzle Hose Assembly

ProcedureDetach both hose connections from the windshield washernozzles.Detach the washer nozzle hose from the integral clips on thebottom side of the air inlet screen.Remove the windshield washer nozzle hose.
