Secondary Camshaft Intermediate Drive Chain Removal - Left Side Valvetrain Camshaft

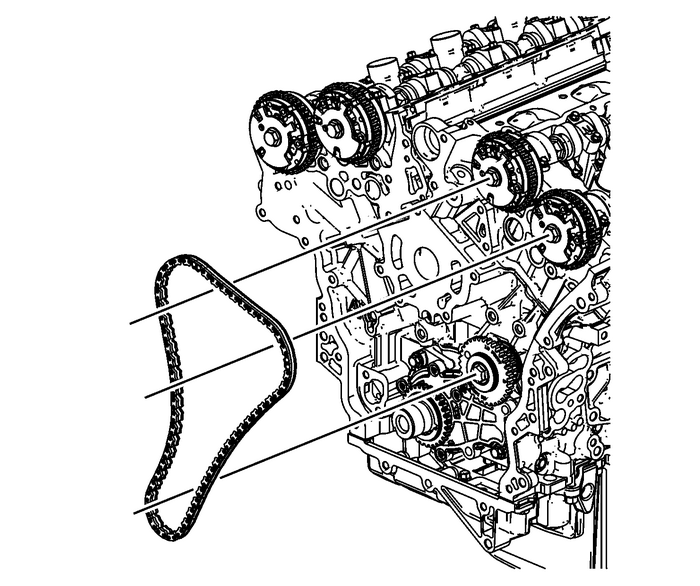

Remove the left secondary camshaft drive chain from the leftcamshaft position actuators and the left camshaft intermediatedrive chain idler sprocket.

Timing Chain Idler Sprocket Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the left camshaft intermediate drive chain idlerbolt.Remove the left camshaft intermediate drive chainidler. ...

Secondary Timing Chain Guide Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the left secondary camshaft drive chain guidebolts.Remove the left secondary camshaft drive chain guide. ...
