Camshaft Cover Removal - Right Side Valvetrain Camshaft

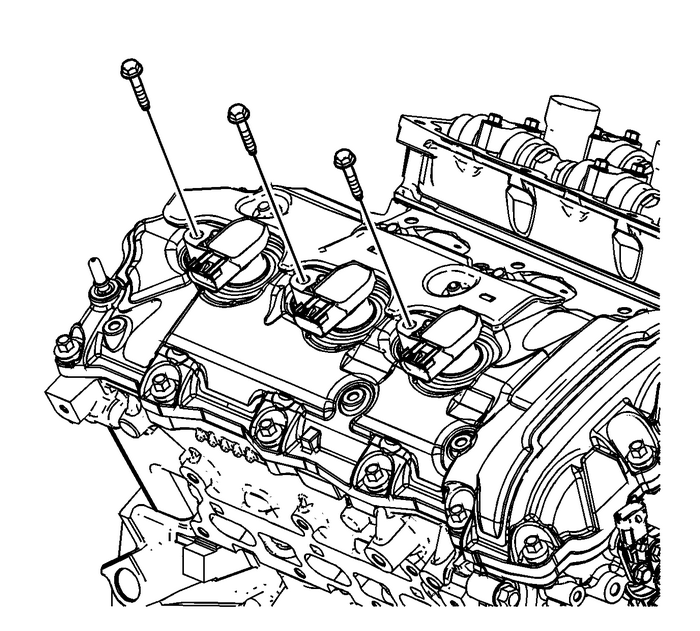

Remove the ignition coil bolts.

Camshaft Cover Removal - Right Side Valvetrain Camshaft

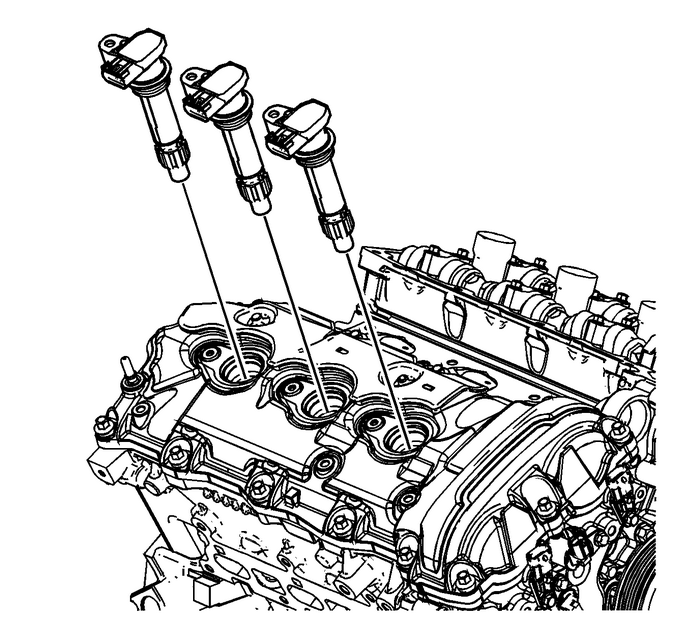

Remove the ignition coils.

Camshaft Cover Removal - Right Side Valvetrain Camshaft

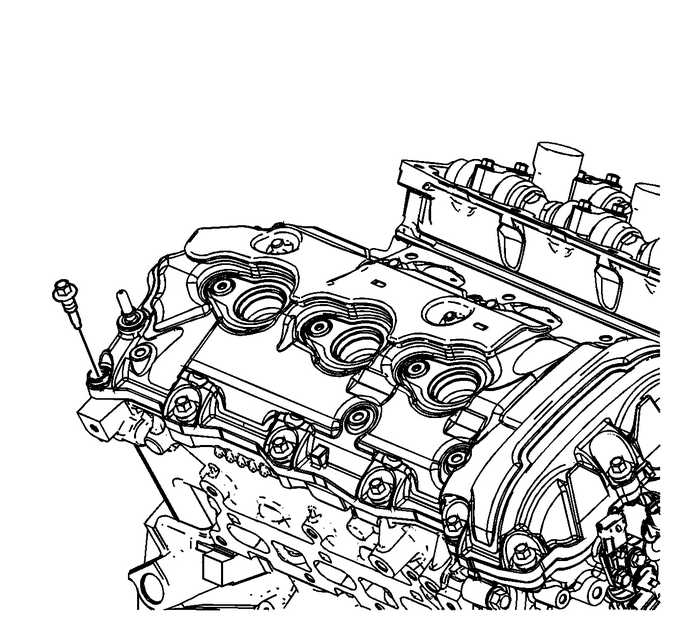

Remove the right camshaft cover bolts.Remove and discard the camshaft cover grommets and camshaftcover bolts if they are serviced with the grommet.

Camshaft Cover Removal - Right Side Valvetrain Camshaft

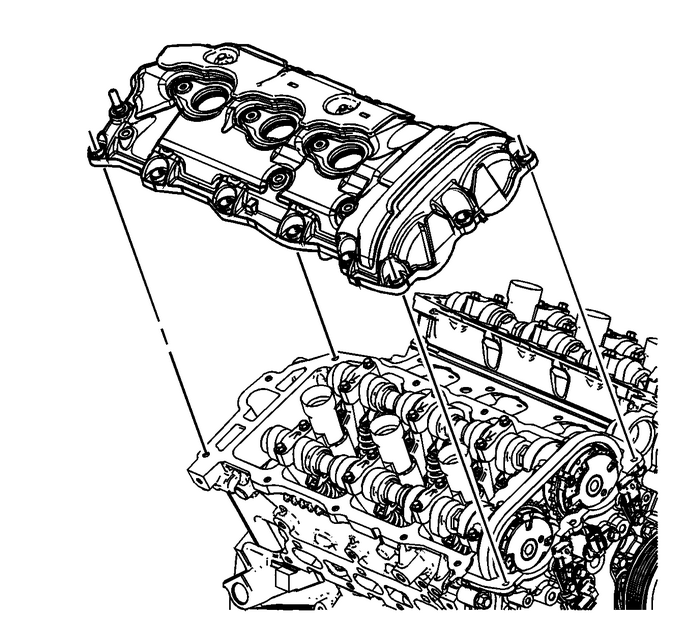

Remove the right camshaft cover from the right cylinderhead.

Camshaft Cover Removal - Left Side Valvetrain Camshaft
Remove the ignition coil bolts.Remove the ignition coils.Remove the left camshaft cover bolts.Remove and discard the camshaft cover grommets and camshaftcover bolts if they are serviced with the gromm ...

Timing Chain Idler Sprocket Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the left camshaft intermediate drive chain idlerbolt.Remove the left camshaft intermediate drive chainidler. ...
