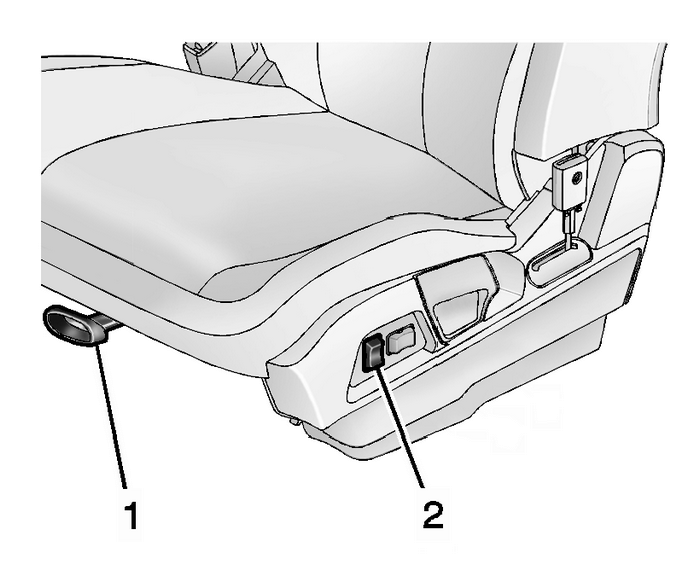

Four-Way Power Seat

Seat Adjustment Seats

Seat Position HandleHeight Adjustment Control

To adjust the seat, if equipped:

Move the seat forward or rearward using the handle under the front of the seat cushion-(1).SeeSeat Adjustment.Raise or lower the entire seat by moving the control-(2) up or down.

SeePower Seat Adjustment.

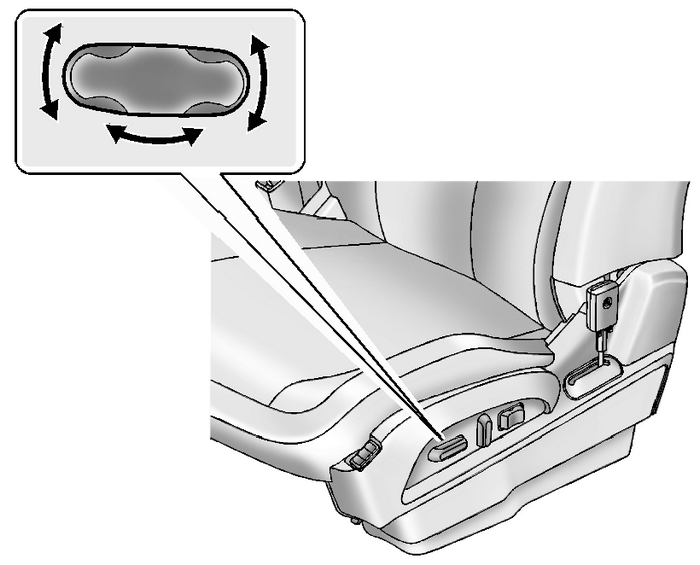

Eight-Way Power Seat

Seat Adjustment Seats

To adjust a power seat, if equipped:

Move the seat forward or rearward by sliding the control forward or rearward.Raise or lower the front part of the seat cushion by moving the front of the controlup or down.Raise or lower the entire seat by moving the rear of the control up or down.

SeePower Seat Adjustment.

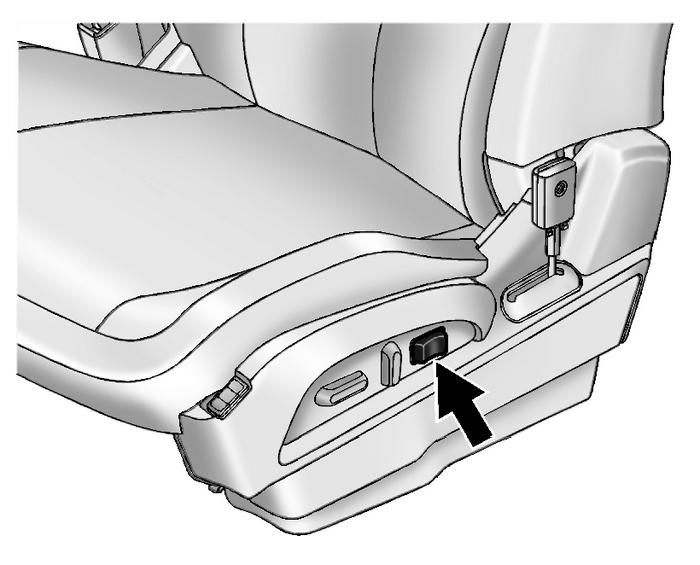

Lumbar AdjustmentEight-Way Power Seat Shown, Four-Way Similar

Seat Adjustment Seats

If available, press and hold the front or rear of the switch to increase or decreaselumbar support. Release the switch when the seatback reaches the desired level oflumbar support.

SeeLumbar Adjustment.

Reclining Seatbacks

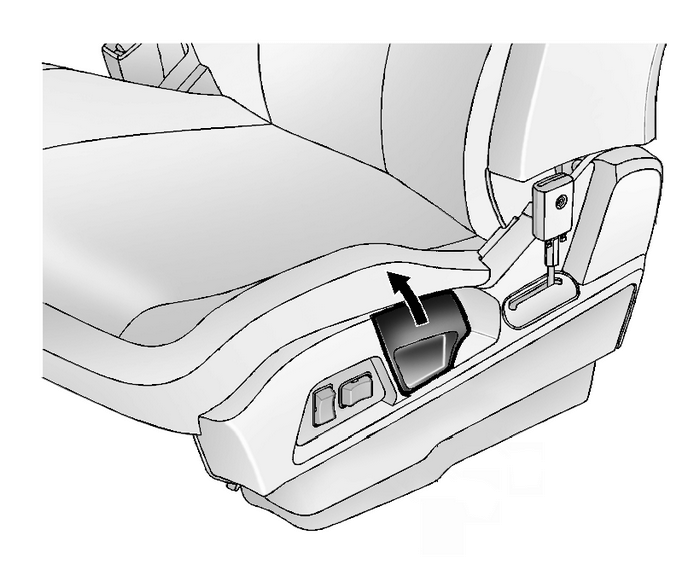

Manual Reclining Seatbacks

Seat Adjustment Seats

To recline a manual seatback:

Lift the lever.Move the seatback to the desired position, and then release the lever to lock theseatback in place.Push and pull on the seatback to make sure it is locked.

To return the seatback to the upright position:

Lift the lever fully without applying pressure to the seatback, and the seatback willreturn to the upright position.Push and pull on the seatback to make sure it is locked.

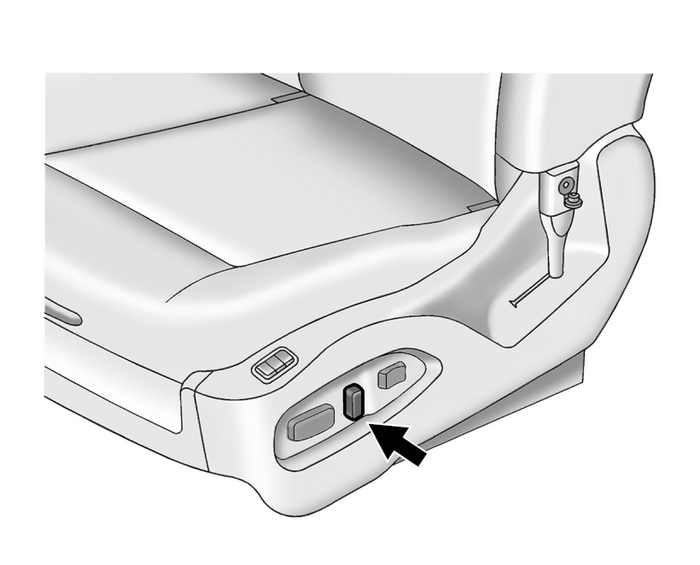

Power Reclining Seatbacks

Seat Adjustment Seats

To adjust a power seatback, if available:

Tilt the top of the control rearward to recline.Tilt the top of the control forward to raise.

SeeReclining Seatbacks.
