Front Seat Adjuster Actuator Replacement Seats Front

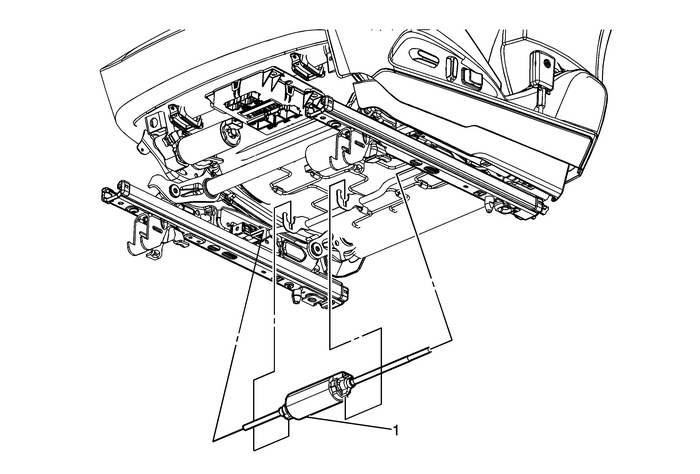

Front Seat Adjuster Actuator Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation

1

Front Seat Adjuster Actuator Replacement

ProcedureDisconnect the electric connector.Remove the seat adjuster motor out of both seat framebrackets.Remove the seat adjuster motor cables by pulling the cablesout of adjuster tracks.
