Front Seat Adjuster Knob Replacement Seats Front

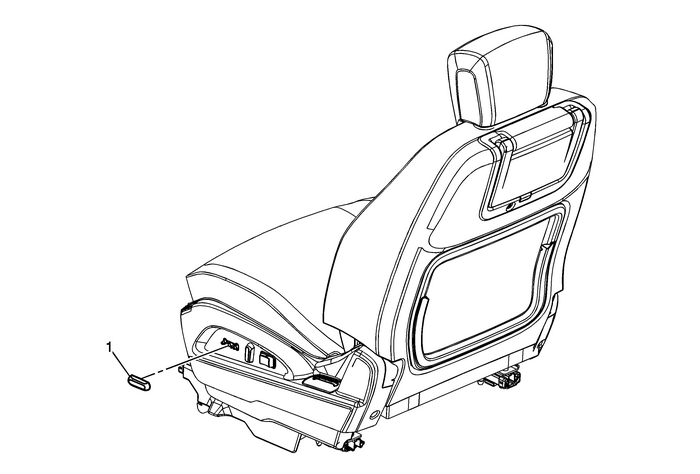

Front Seat Adjuster Knob Replacement

Callout

Component Name

1

Front Seat Adjuster Switch Knob

Tip:Use a flat-bladed tool to release the adjuster knob from theswitch.
