Torque Converter and Differential Housing Assembly Disassemble Automatic Transmission Unit

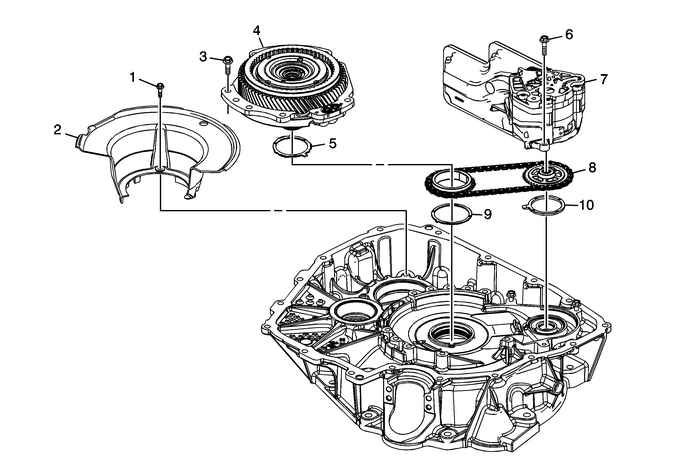

Torque Converter and Differential Housing Assembly Disassemble

Callout

Component Name

1

Front Differential Carrier Baffle Bolt-M6-x-25

2

Front Differential Carrier Baffle

3

Front Differential Transfer Drive Gear Support Bolt-M8-x-25 (Qty: 9)

4

Front Differential Transfer Drive Gear Support Assembly

5

Drive Sprocket Thrust Washer

6

A/Trans Fluid Pump Bolt-M6-x-25 (Qty: 3)

7

A/Trans Fluid Pump Assembly

8

Drive Link Assembly

Note:Link and sprockets will be removed as an assembly.

9

Drive Sprocket Thrust Washer

Note:Drive sprocket thrust washer may be stuck to the torque converter housing.

10

Driven Sprocket Thrust Washer

Torque Converter and Differential Housing - Case Side Automatic Transmission Unit
Torque Converter and DifferentialHousing-–-Case Side(8)Lube(23)Auxiliary Suction (BAS+Only)(38)Seal Drainback ...

Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal Automatic Transmission Unit
Torque Converter and Differential Housing, Front Differential Transfer Drive Gear,and Front Differential Carrier RemovalCalloutComponent Name1Torque Converter and Differential Housing Bolt-M8-x-35 (Qt ...
