Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal Automatic Transmission Unit

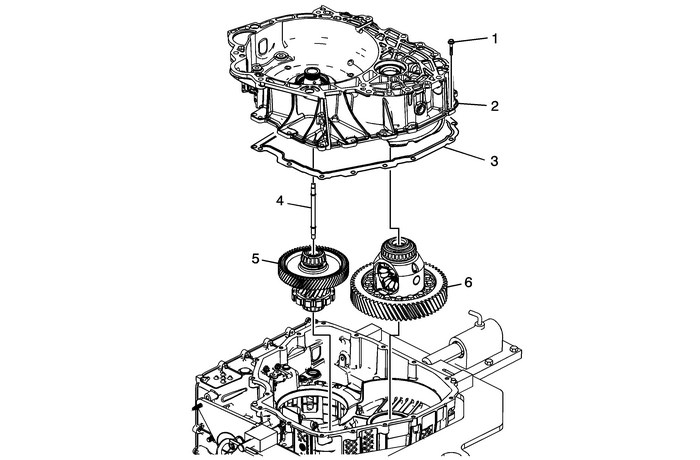

Torque Converter and Differential Housing, Front Differential Transfer Drive Gear,and Front Differential Carrier Removal

Callout

Component Name

1

Torque Converter and Differential Housing Bolt-M8-x-35 (Qty: 17)

2

Torque Converter, Support and A/Trans Fluid Pump Housing Assembly

3

Torque Converter Housing Outer Seal

Note:The seal is not reusable.

4

Front Differential Drive Pinion Gear Lube Tube

5

Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly

6

Front Differential Carrier Assembly

Torque Converter and Differential Housing Assembly Disassemble Automatic Transmission Unit
