Torque Converter and Differential Housing Installation Automatic Transmission Unit

Torque Converter and Differential Housing Installation

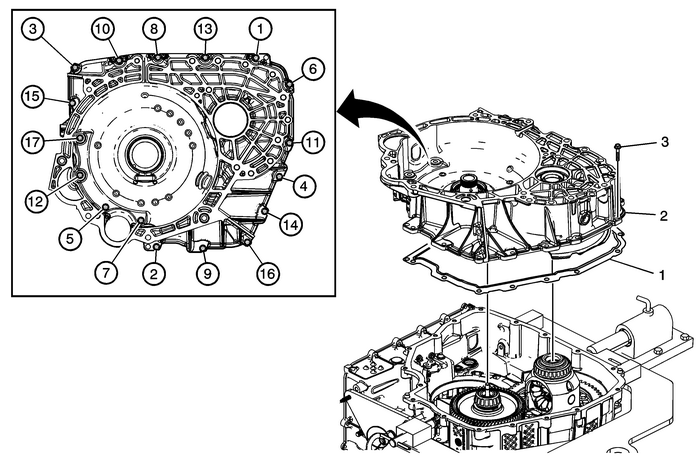

Callout

Component Name

1

Torque Converter Housing Outer Seal

2

Torque Converter and Support and A/Trans Fluid Pump HousingAssembly

3

Torque Converter and Differential HousingBolts-M8-x-35 (Qty: 17)

Caution:Some bolt torques specifications are different. Overtightening the bolts at the 12, 15 and 17 positions in the sequencecould cause damage to the case threads.

Caution:Refer toFastener Caution.

Procedure:

Tighten in sequence shown.

Tighten

Bolts 1–11, 13–14 and 16 to36Y (27-lb-ft)Bolts 12, 15 and 17 to 30-Y(22-lb-ft)

Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal Automatic Transmission Unit
Torque Converter and Differential Housing, Front Differential Transfer Drive Gear,and Front Differential Carrier RemovalCalloutComponent Name1Torque Converter and Differential Housing Bolt-M8-x-35 (Qt ...

Torque Converter Fluid Seal Replacement Automatic Transmission Unit
Torque Converter Fluid Seal ReplacementCalloutComponent Name1Torque Converter Fluid SealCaution:Support the back side of the torque converter housing whileinstalling the seal. Install the seal until i ...
