Chevrolet Equinox Service Manual: Power Seat Adjustment Seats Front

Chevrolet Equinox Service Manual / Body / Seating / Power Seat Adjustment Seats Front

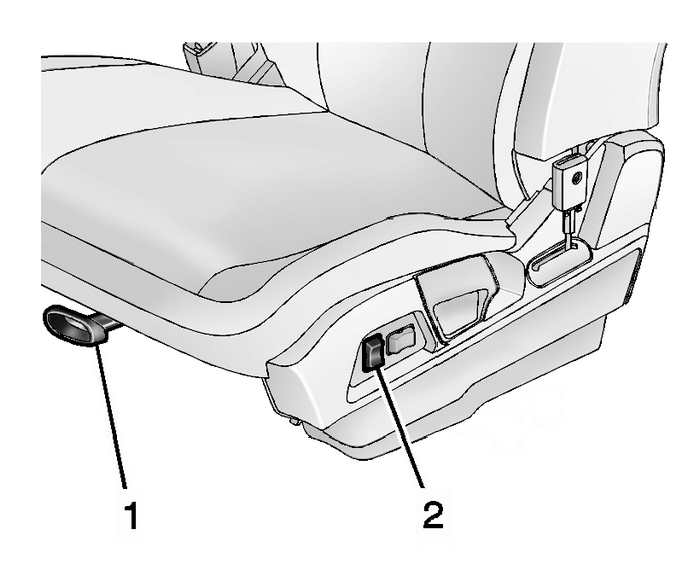

Four-Way Power Seat

Power Seat Adjustment Seats Front

Seat Position HandleHeight Adjustment Control

To adjust a power seat, if equipped:

Move the seat forward or rearward using the handle under the front of the seat cushion-(1).SeeSeat Adjustment.Raise or lower the entire seat by moving the control-(2) up or down.

To adjust the seatback, seeReclining Seatbacks.

To adjust the lumbar support, seeLumbar Adjustment.

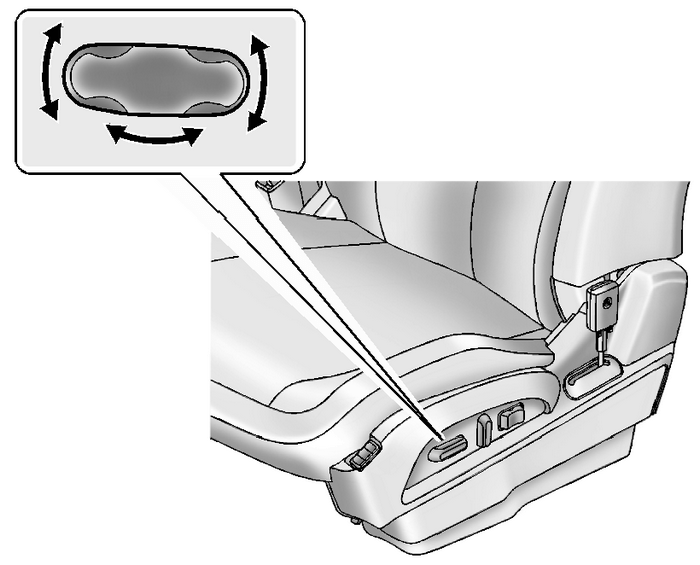

Eight-Way Power Seats

Power Seat Adjustment Seats Front

To adjust a power seat, if equipped:

Move the seat forward or rearward by sliding the control forward or rearward.Raise or lower the front part of the seat cushion by moving the front of the controlup or down.Raise or lower the entire seat by moving the rear of the control up or down.

To adjust the seatback, seeReclining Seatbacks.

To adjust the lumbar support, seeLumbar Adjustment.
