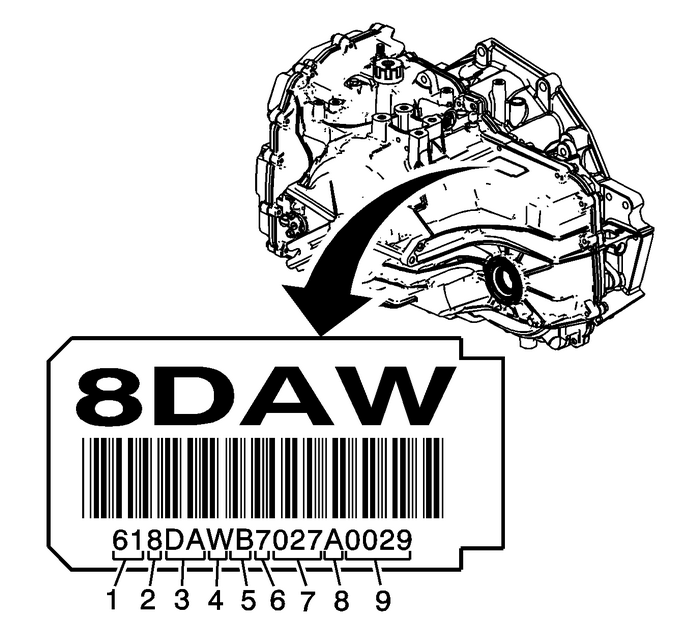

Transmission Identification Information Automatic Transmission Unit

456789

(1)Code for AutomaticTransmission
(2)Model Year
(3)Model for Transmission
(4)Transmission Family
(5)Source Code for Plant
(6)Calender Year
(7)Julian Date
(8)Shift/Line (A/B)
(9)Numeric sequence starting at0001-@-12:01 AM each day
Source Code for Plant4-–-Ramos Arizpe, MexicoH-–-Ypsilanti, MichiganJ-–-Windsor, OntarioK-–-St. Catharines, OntarioS-–-Strasbourg, FranceW-–-Warren, MichiganY-–-Toledo, OhioR-–-Boryeong, KoreaM-–-Yan Tai, Shan Dong, ChinaP-–-San Luis Potosi, Mexico
