3-5-Reverse and 4-5-6 Clutch Housing Installation Automatic Transmission Unit

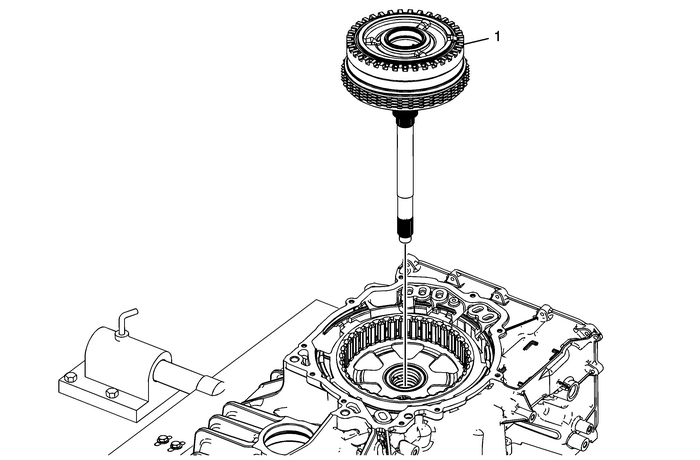

3-5-Reverse and 4-5-6 Clutch Housing Installation

Callout

Component Name

1

3–5 Reverse and 4–5–6 Clutch Assembly

Note:Rotate the assembly back and forth to align the 3–5 reverse clutch plates with thereaction sun gear housing.

3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation Automatic Transmission Unit
3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier InstallationCalloutComponent Name13–5 Reverse and 4–5–6 Clutch Housing Thrust Bearing22–6 Clutch Apply Plate (Wave ...

Transmission Identification Information Automatic Transmission Unit
456789(1)Code for AutomaticTransmission(2)Model Year(3)Model for Transmission(4)Transmission Family(5)Source Code for Plant(6)Calender Year(7)Julian Date(8)Shift/Line (A/B)(9)Numeric sequence starting ...
