3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation Automatic Transmission Unit

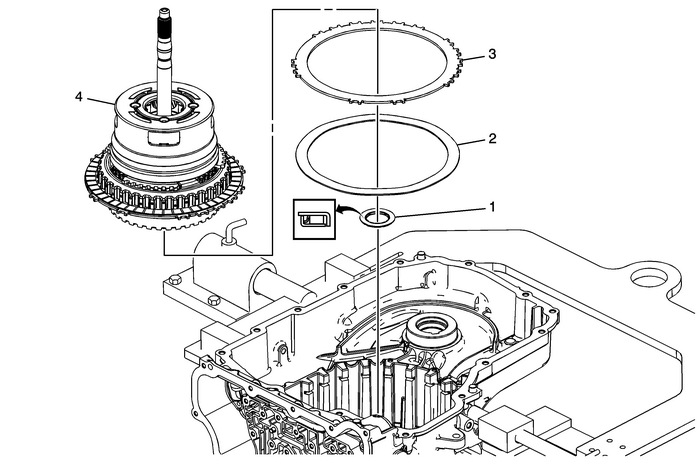

3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

Callout

Component Name

1

3–5 Reverse and 4–5–6 Clutch Housing Thrust Bearing

2

2–6 Clutch Apply Plate (Waved)

3

2–6 Clutch Plate-(Qty:-1)

Note:

Only install one 2–6 Clutch Plate. The remaining clutch plate is installed with thegearset assembly.Align the large flat areas with the valve body end of the case and the 2 tabs on theclutch plate that are close to each other with the slots at the bottom right cornerof the case.

4

3–5 Reverse and 4–5–6 Clutch Housing Assembly and Gearset

Note:Align the large flat areas of the 2–6 Clutch Plate with the valve body end of thecase and the 2 tabs on the clutch plate that are close to each other with the slotsat the bottom right corner of the case.
