Rear Side Door Lock Cylinder Opening Cover Replacement Doors

Rear Side Door Lock Cylinder Opening Cover Replacement

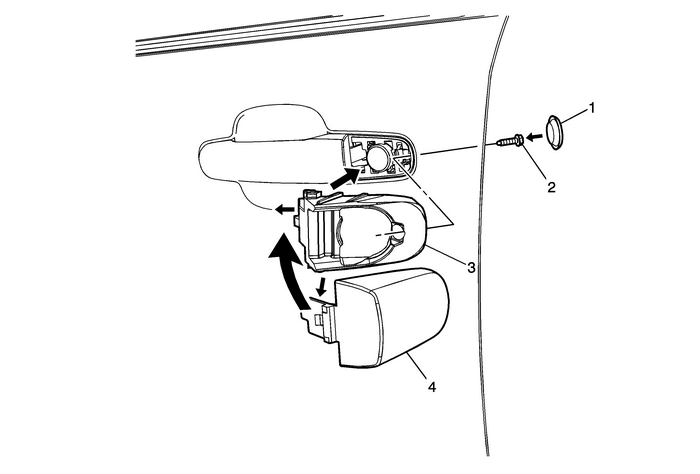

Callout

Component Name

1

Rear Side Door Outside Handle Screw Plug

ProcedureDo Not remove the door trim panel.Use a flat-bladed tool to remove the cylinder opening accessplug.

2

Rear Side Door Outside Handle Screw

Caution:Refer toFastener Caution.

Procedure

Do Not remove the cylinder screw completely from the housing.Unscrew the screw to a hard stop.

Tighten

7-Y(62-lb-in)

3

Rear Side Door Outside Lock Core

4

Rear Side Door Outside Lock Core Cap

Tip:Use a flat-bladed tool to remove the cover from the lockcylinder core.
