Radio Rear Side Door Lower Speaker Replacement Doors

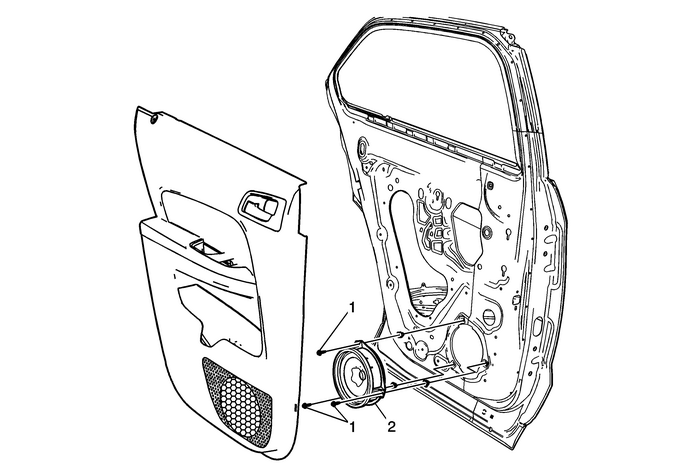

Radio Rear Side Door Lower Speaker Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear side door trim. Refer toRear Side Door Trim Panel Replacement.

1

Radio Rear Side Door Lower Speaker Screw(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Radio Rear Side Door Lower Speaker

Procedure

Disconnect the electrical connectors.
