Radio Front Side Door Lower Speaker Replacement Doors

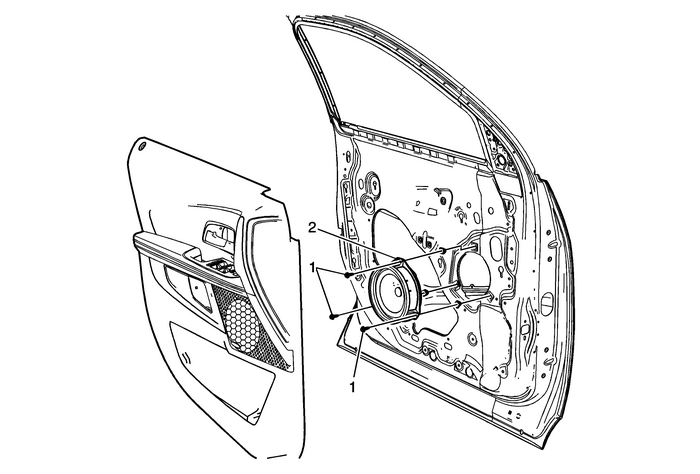

Radio Front Side Door Lower Speaker Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer toFront Side Door Trim Panel Replacement.

1

Radio Front Side Door Lower Speaker Screws(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Radio Front Side Door Lower Speaker

Procedure

Disconnect the electrical connector.
