Differential Carrier Removal (6T40/45/50) Automatic Transmission Unit

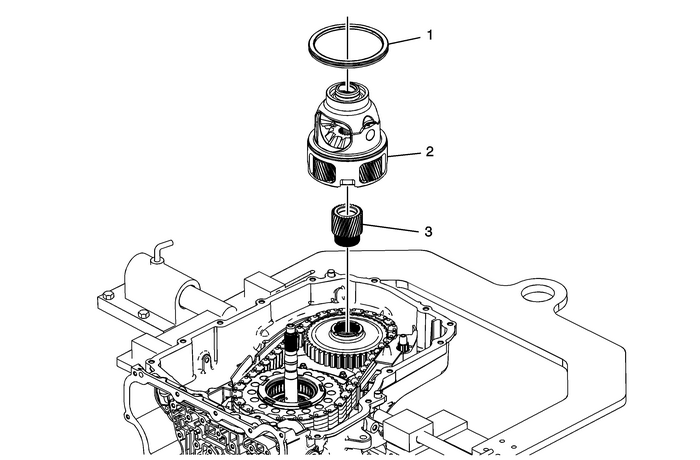

Differential Carrier Removal

Callout

Component Name

1

Front Differential Carrier Bearing Assembly

2

Differential Carrier Assembly

3

Final Drive Sun Gear

Control Valve Upper Body Spacer Plate Assembly Automatic Transmission Unit
Control Valve Upper Body Spacer Plate Assembly(2)Line(3)Decrease(4)Converter Feed(5)TCC Release(7)Cooler Feed(8)Lube(9)Regulated Apply(10)Compensator Feed(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/ ...

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45/50) Automatic Transmission Unit
Drive and Driven Sprocket, Drive Link, and Park Pawl InstallationCalloutComponent Name1Front Differential Carrier Baffle2Front Differential Carrier Baffle Bolt-M6-x-16-(Qty:-2)Caution:Refer toFastener ...
