Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45/50) Automatic Transmission Unit

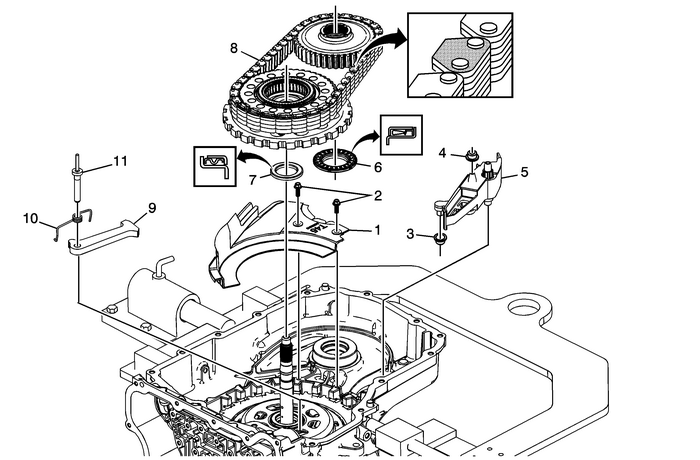

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation

Callout

Component Name

1

Front Differential Carrier Baffle

2

Front Differential Carrier Baffle Bolt-M6-x-16-(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)

3

Drive Link Lube Scoop Seal

4

Drive Link Lube Fluid Seal

5

Drive Link Lube Scoop

6

Driven Sprocket Bearing Assembly

7

Drive Sprocket Bearing Assembly

8

Driven Sprocket Assembly, Drive Sprocket Assembly and Drive Link

Note:

Install the drive link with the colored links and/or part number facing up.The drive link, drive, and driven sprocket assemblies must be installed at the sametime.The ball bearing should spin freely and smoothly.The driven sprocket ball bearing inner race has a slight interference fit with thecase. Tap gently with the palm of a hand or a soft tip hammer to install.

9

Park Pawl

10

Park Pawl Spring

11

Park Pawl Shaft

Note:Check to ensure that the park pawl operates freely and is not binding.
