Rear Side Door Lower Molding Replacement Doors

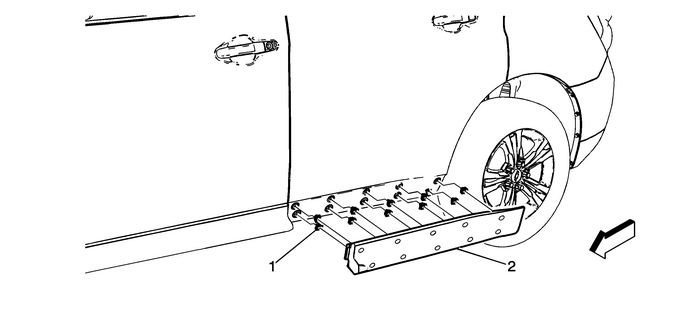

Rear Side Door Lower Molding Replacement

Callout

Component Name

Preliminary ProceduresOpen the rear door in order to access the lower moldingretainers first.Using a trim-type tool, release the lower retainers followedby the upper retainers.

1

Rear Side Door Lower Molding Retainer(Qty:-10)

2

Rear Side Door Lower Molding

Rear Side Door Lock Cylinder Opening Cover Replacement Doors
Rear Side Door Lock Cylinder Opening Cover ReplacementCalloutComponent Name1Rear Side Door Outside Handle Screw PlugProcedureDo Not remove the door trim panel.Use a flat-bladed tool to remove the cyli ...

Rear Side Door Lower Molding Replacement (Terrain) Doors
Rear Side Door Lower Molding ReplacementCalloutComponent NamePreliminary ProceduresOpen the rear door in order to access the rear side doorlower molding sealing strip.Release the strip from the lower ...
