Rear Seat Buckle Side Belt Replacement Seats Rear

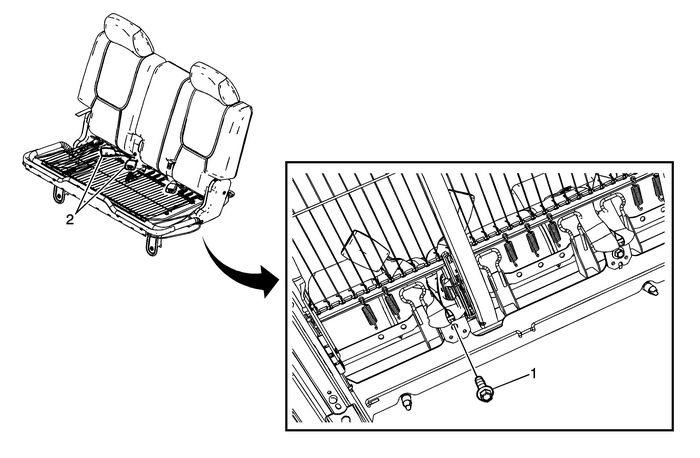

Rear Seat Buckle Side Belt Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat. Refer toRear Seat Removal and Installation.Remove the rear seat retaining bolts and reposition the seatin the vehicle to access the buckle bolts on the underside of theseat.

1

Rear Seat Belt Buckle Bolt

Caution:Refer toFastener Caution.

Tighten

50-Y-(37-lb-ft)

2

Rear Seat Belt Buckle
