Rear Seat Cushion Frame Replacement Seats Rear

Rear Seat Cushion Frame Replacement

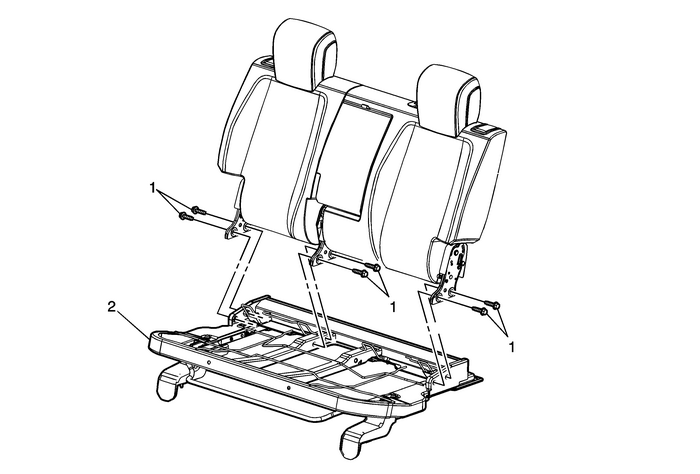

Callout

Component Name

Preliminary ProcedureRemove the rear seat riser finish cover. Refer toRear Seat Riser Finish Cover ReplacementRemove the rear seat center belt anchor bolt and belt fromthe seat cushion frame. Refer toRear Seat Center Belt Replacement.Remove the rear seat. Refer toRear Seat Removal and Installation.Remove the seat cushion cover and pad. Refer toRear Seat Cushion Cover and Pad Replacement.

1

Rear Seat Cushion Frame Bolt (Qty:-6)

Caution:Refer toFastener Caution.

Tighten

50-Y(37-lb-ft)

2

Rear Seat Cushion Frame

Tip:If replacing the seat cushion frame transfer components asnecessary.
