Rear Seat Floor Filler Trim Panel Replacement Seats Rear

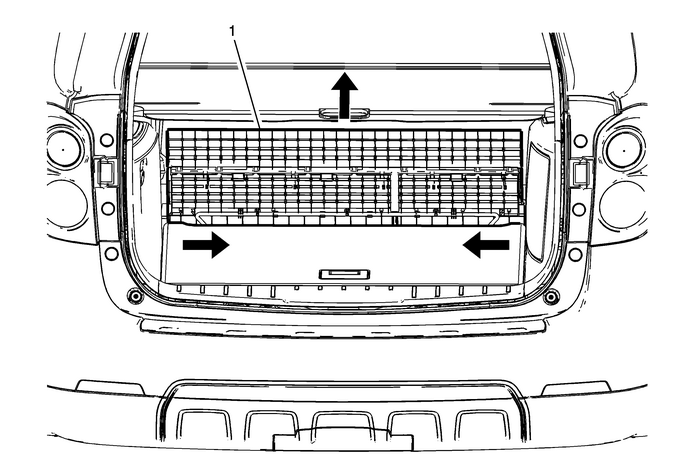

Rear Seat Floor Filler Trim Panel Replacement

Callout

Component Name

1

Rear Seat Floor Filler Trim Panel

ProcedureMake sure that the rear seat back is in the upposition.Lift the filler trim panel up to gain access to the mountingrod guides.Depress the tabs inboard on the mounting rod guides and pullupward to remove the trim panel and rod.
