Radio Antenna Base Replacement Entertainment

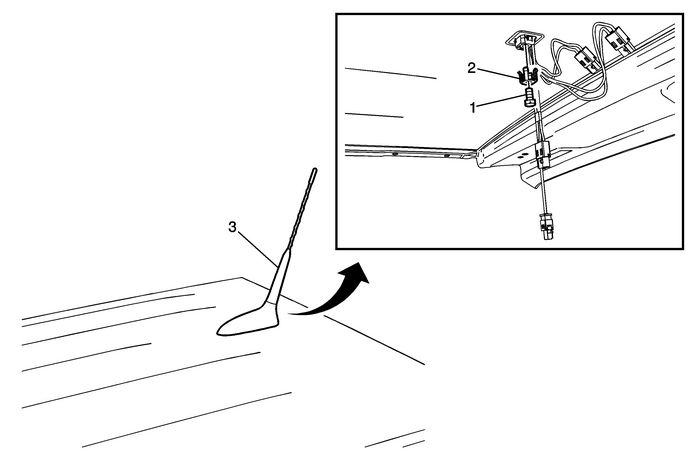

Radio Antenna Base Replacement

Callout

Component Name

Preliminary Procedure

Lower the rear of the headlining trim panel. Refer toHeadlining Trim Panel Replacement.

1

Radio Antenna Base Fastener

Caution:Refer toFastener Caution.

2

Radio Antenna Base Retainer

Procedure

Use a new retainer.

3

Radio Antenna Base Assembly

Procedure

Disconnect the electrical connectors.
