Rear Seat Back Cushion Panel Replacement (with 60 percent seat) Seats Rear

Rear Seat Back Cushion Panel Replacement

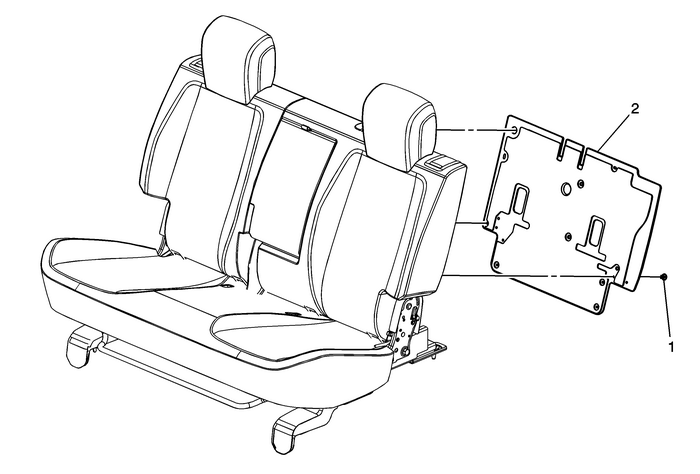

Callout

Component Name

Preliminary ProceduresRemove the rear seat recliner inner finish cover. Refer toRear Seat Recliner Inner Finish Cover ReplacementRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover ReplacementRemove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover Replacement

1

Rear Seat Back Cushion Trim Panel Fastener(Qty:-7)

Procedure

Disengage the j-channel, then unzip the seat cover andreposition it to gain access to the panel and fasteners.

2

Rear Seat Back Cushion Trim Panel
