Inside Rearview Mirror Replacement Rearview

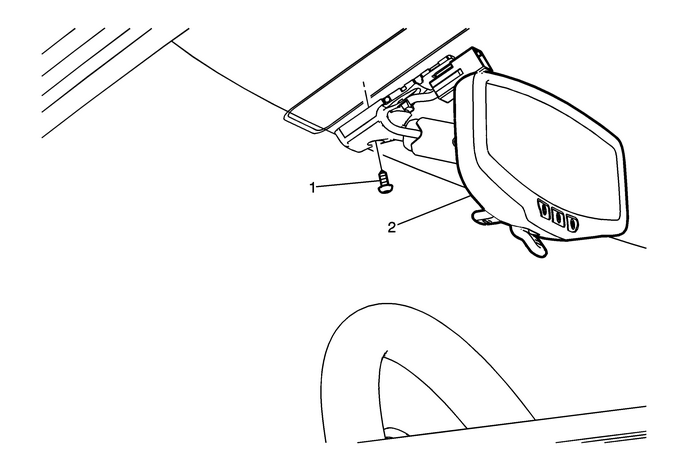

Inside Rearview Mirror Replacement

Callout

Component Name

1

Inside Rearview Mirror Screw

Caution:Refer toFastener Caution.

Procedure

Remove the inside rearview mirror cover, if equipped.

Tighten

2-Y (18-lb-in)

2

Inside Rearview Mirror

ProcedureDisconnect the electrical connector, if equipped.Adjust the mirror to the full upward position.Slide the mirror upward off of the rearview mirror button.Refer toControl Module Referencesfor programming and setup information.
