Rear Seat Back Cushion Latch Release Handle Replacement Seats Rear

Rear Seat Back Cushion Latch Release Handle Replacement

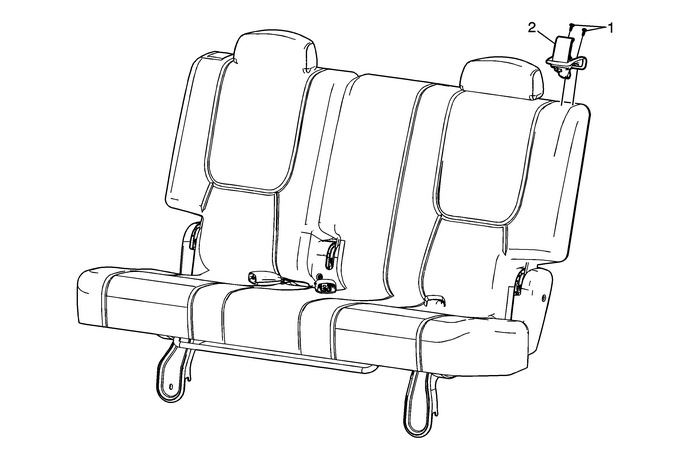

Callout

Component Name

1

Rear Seat Back Cushion Latch Release Handle Screw(Qty:-2)

Caution:Refer toFastener Caution.

Tip:Lift up the handle to access the screws.

Tighten

2.5-Y(22-lb-ft)

2

Rear Seat Back Cushion Latch Release Handle

Tip:Disconnect the latch release cable from the handle.
