Rear Seat Back Cushion Frame Replacement (with 60 percent seat) Seats Rear

Rear Seat Back Cushion Frame Replacement

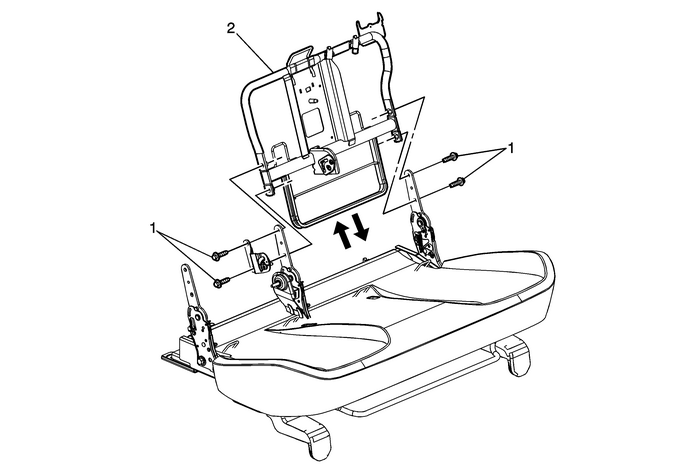

Callout

Component Name

Preliminary ProceduresRemove the rear seat. Refer toRear Seat Removal and Installation.Remove the rear seat recliner inner finish cover. Refer toRear Seat Recliner Inner Finish Cover ReplacementRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover ReplacementRemove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover ReplacementRemove the rear seat center belt. Refer toRear Seat Center Belt Replacement.Remove the rear seat back cushion latch cable. Refer toRear Seat Back Cushion Latch Cable Replacement.Remove the rear seat back cover and pad. Refer toRear Seat Back Cushion Cover and Pad Replacement.

1

Rear Seat Back Recliner Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

50-Y(37-lb-ft)

2

Rear Seat Back Cushion Frame Assembly

ProcedureRemove the rear seat center retractor. Refer toRear Seat Center Belt Replacement.Disconnect the seat recliner cable from the reclinermechanism on the seat back.
