Chevrolet Equinox Service Manual: Cylinder Head Disassemble Engine Block Cylinder Head

Chevrolet Equinox Service Manual / Powertrain / Engine / Cylinder Head Disassemble Engine Block Cylinder Head

Special ToolsEN 8062Valve Spring Compressor - HeadOffEN 46116Valve Stem Seal Remover/InstallerEN 46117Valve Stem Key Remover/InstallerEN 46119Off-Vehicle Valve Spring CompressorAdapterEN 46122Camshaft Position Actuator Check-Ball ValveRemover/InstallerEN 49248Injector Rail Assembly Remover

For equivalent regional tools, refer toSpecial Tools.

Cylinder Head Disassemble Engine Block Cylinder Head

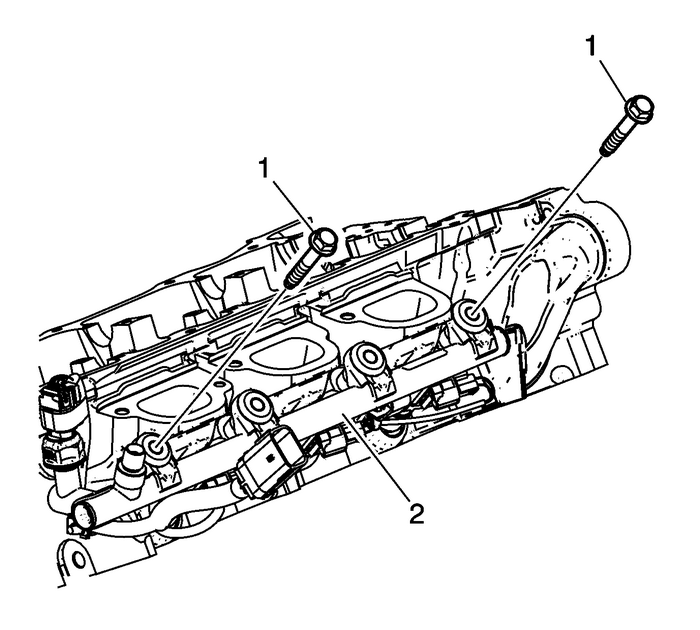

Remove the fuel rail bolts-(1).

Cylinder Head Disassemble Engine Block Cylinder Head

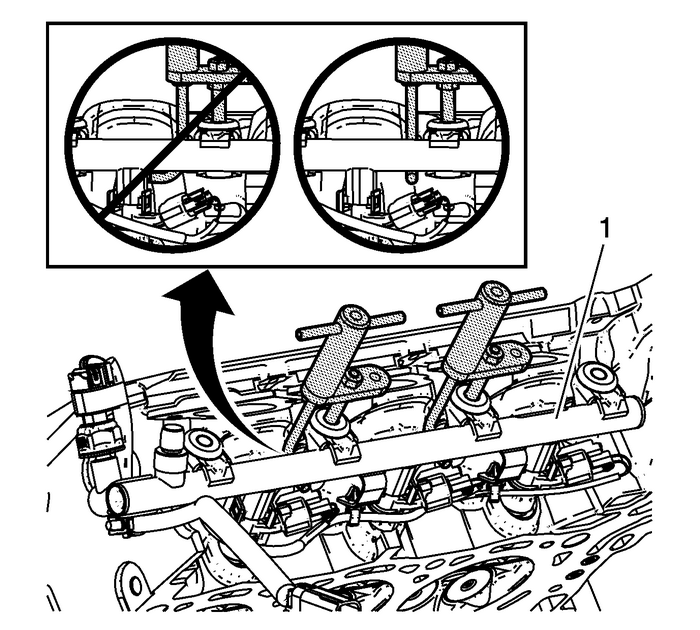

Remove the fuel rail and injectors-(1) as anassembly using theEN 49248remover.

Cylinder Head Disassemble Engine Block Cylinder Head

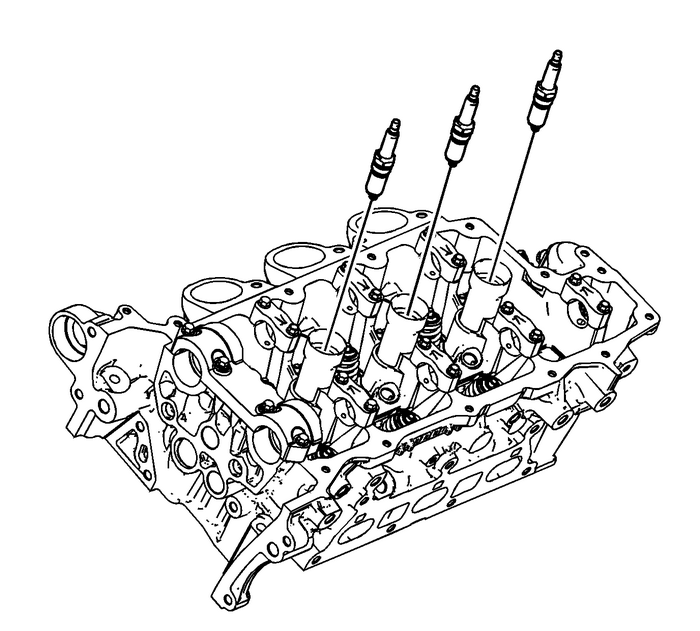

Remove the spark plugs.

Cylinder Head Disassemble Engine Block Cylinder Head

Note:Ensure valve heads will not contact anything during thefollowing step in order to avoid bending or damage.

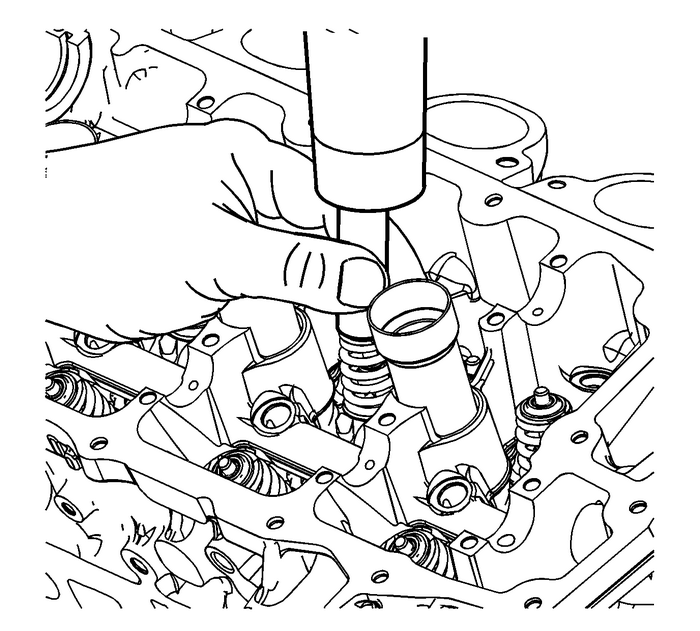

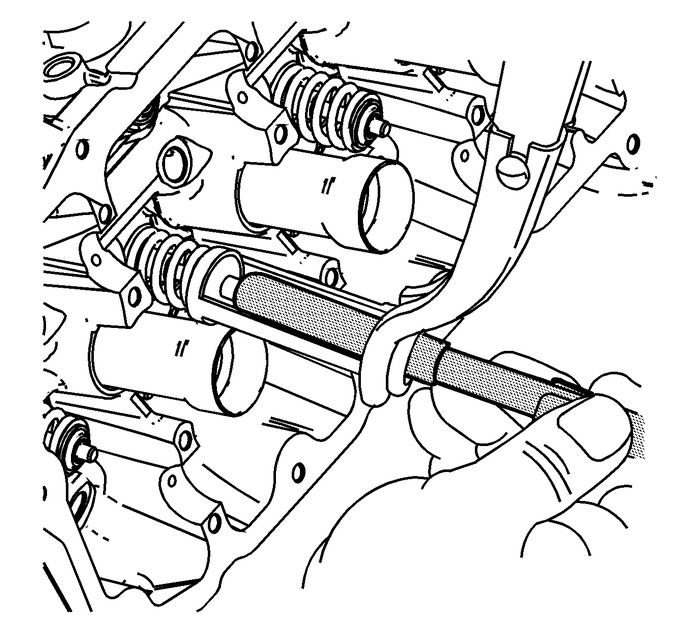

Using an appropriately sized deep socket and a plastichammer, lightly tap on the valve spring retainer to loosen thevalve keepers.

Cylinder Head Disassemble Engine Block Cylinder Head

Warning:Compressed valve springs have high tension against the valvespring compressor. Valve springs that are not properly compressedby or released from the valve spring compressor can be ejected fromthe valve spring compressor with intense force. Use care whencompressing or releasing the valve spring with the valve springcompressor and when removing or installing the valve stem keys.Failing to use care may cause personal injury.

Caution:Do not compress the valve springs to less than24.0-mm (0.943-in). Contact between the valvespring retainer and the valve stem oil seal can cause potentialvalve stem oil seal damage.

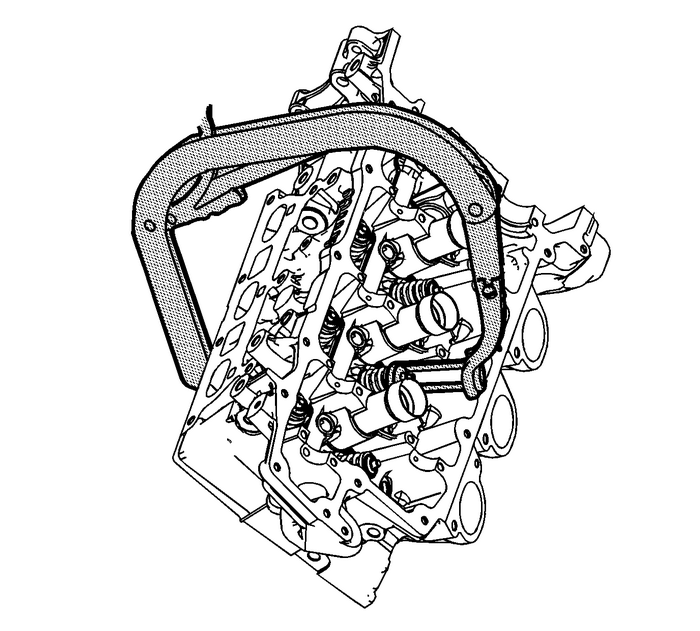

Compress the valve spring using theEN 8062compressorand theEN 46119adapter.

Cylinder Head Disassemble Engine Block Cylinder Head

Use the magnet of theEN 46117remover/installerin order to remove the valve keepers.Remove the valve spring compressor and the adapter.

Cylinder Head Disassemble Engine Block Cylinder Head

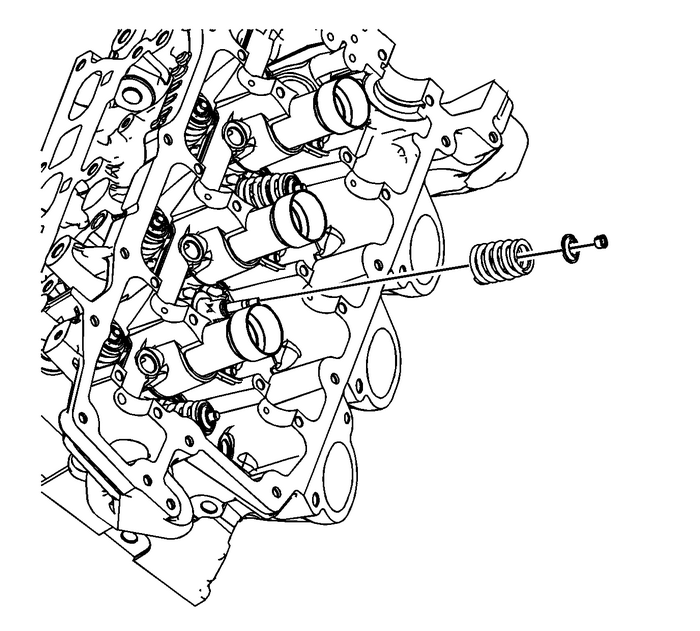

Remove the valve spring retainer.Remove the valve spring.

Cylinder Head Disassemble Engine Block Cylinder Head

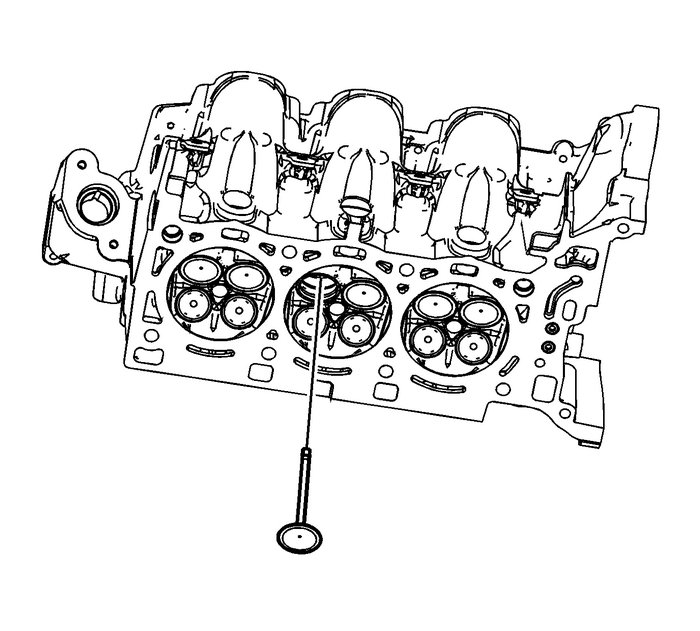

Remove the valve.

Cylinder Head Disassemble Engine Block Cylinder Head

Note:NEVER reuse a valve stem oil seal.

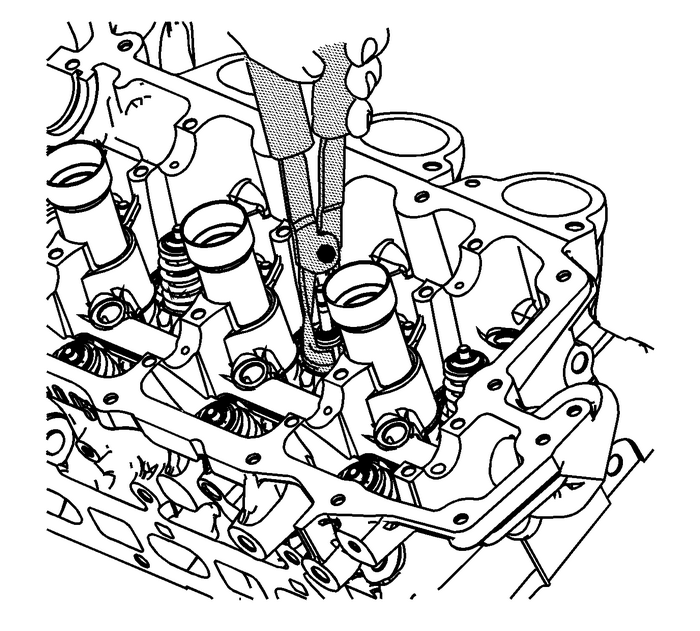

Remove the valve stem oil seal using theEN 46116remover/installerand discard.Repeat these procedures for the remaining valves.

Cylinder Head Disassemble Engine Block Cylinder Head

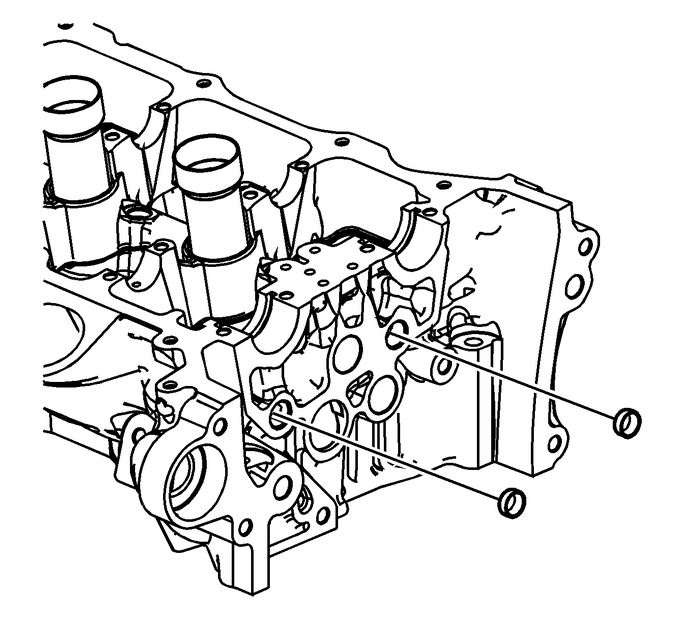

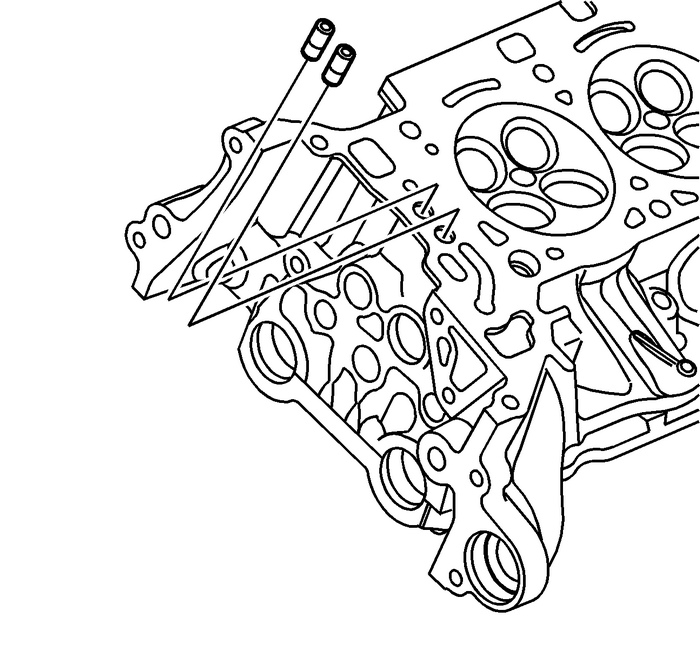

Remove the cylinder head oil gallery expansion plugs.

Cylinder Head Disassemble Engine Block Cylinder Head

Remove the cylinder head coolant threaded plugs.

Cylinder Head Disassemble Engine Block Cylinder Head

Inspect the camshaft position actuator oil feed check valves.Damaged, restricted or clogged check valves must be replaced. Ifcheck valves are OK, disregard remaining steps which detailreplacing the check valves.

Cylinder Head Disassemble Engine Block Cylinder Head

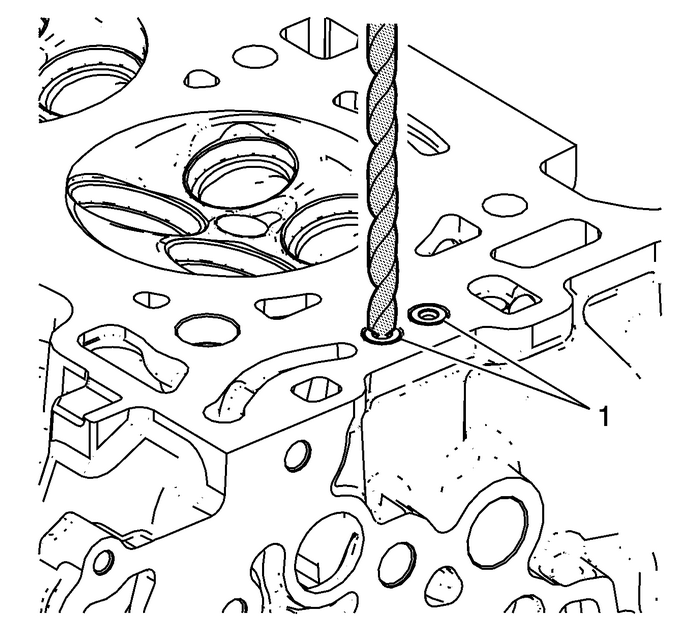

Place cylinder head on firm surface with checkvalves-(1) facing up. Protect all cylinder headcomponents and machined surfaces.Using drill bit EN-46122-3, drill out top portion of checkvalve to expose internal check ball.

Cylinder Head Disassemble Engine Block Cylinder Head

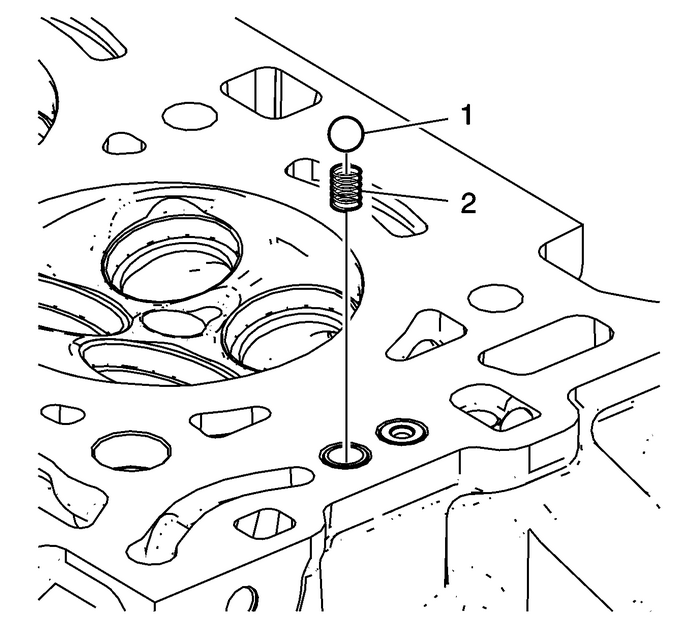

Remove check ball-(1) and check ballspring-(2) from inside of check valve.

Cylinder Head Disassemble Engine Block Cylinder Head

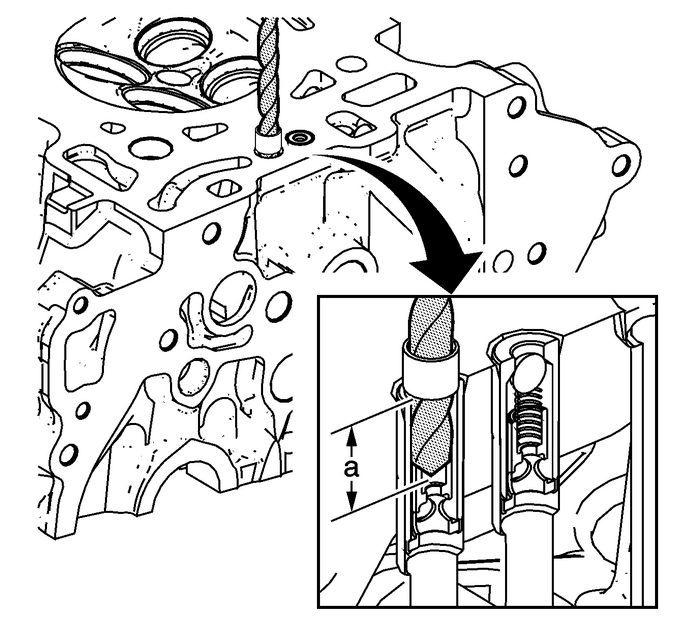

Continue drilling remainder of check valve sleeve to a depthof approximately 19-mm(0.75-in)-(a) by placing tape on drill bit asa depth gauge. It is not necessary or desirable to drill completelythrough the bottom of the check valve.

Cylinder Head Disassemble Engine Block Cylinder Head

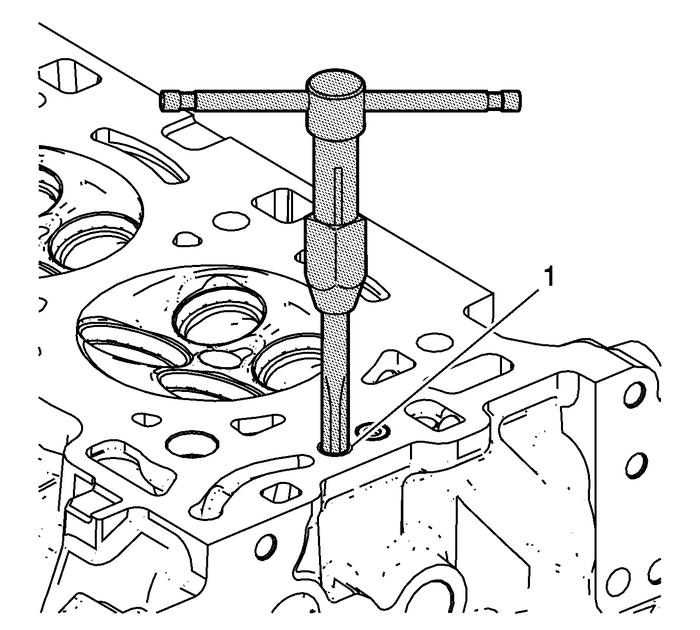

Lubricate tap EN-46122-4 with lubricant included inEN-46122remover/installer. Tap drilled out portion of check valve-(1)remaining in cylinder head. Tap to full depth possible until tapbottoms out in head.

Cylinder Head Disassemble Engine Block Cylinder Head

Assemble bolt, nut, washers, and collarEN-46122-2-(1) as shown. Position collar withslightly-larger inside diameter DOWN toward the cylinderhead.Screw bolt by hand fully down into threaded check valvesleeve, then lightly tighten nut against washer.

Cylinder Head Disassemble Engine Block Cylinder Head

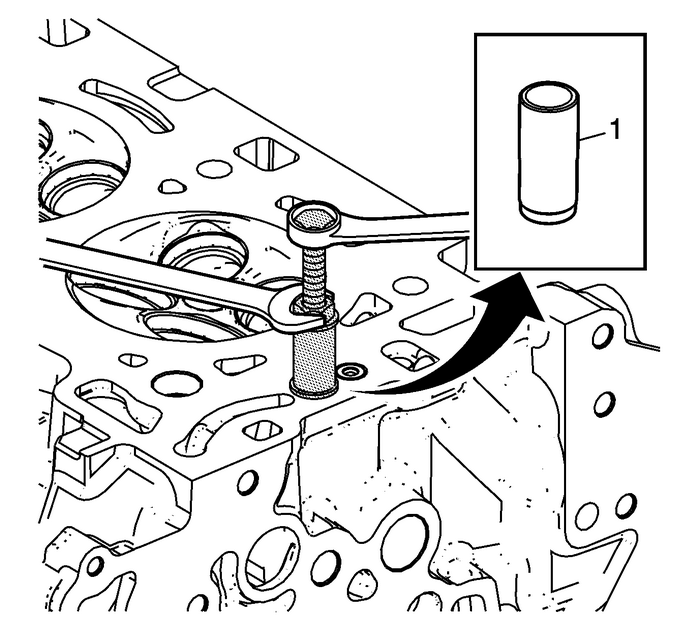

Hold bolt with one wrench, and use another to tighten the nutuntil the check valve sleeve-(1) is removed from thecylinder head.Clean check valve bore and related passages thoroughly toremove any drilling chips or other debris.
